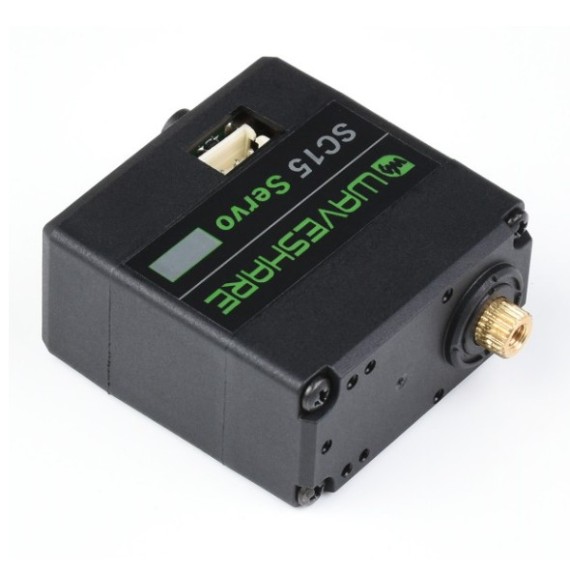

Servo Robot 17kg.cm Metal Gears UART (Waveshare SC15)

31-00021568
SC15 Servo
Waveshare Serial Bus Servo Driver Board
Waveshare ESP32 Servo Driver Expansion Board

ΚατασκευαστήςWaveshare Part NumberSC15 Servo
Διαθέσιμο
Αποστολή σε 24 ώρες
€2240
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€20.16
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

SC15 Programmable Serial Bus Servo

17kg.cm large torque

Application Examples

  • Servos will provide various feedback like position, speed, torque lock, operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control
  • Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos

* images here are for reference ONLY

UART Serial Bus Control

Up To 253 Servos Can Be Connected In Series At The Same Time

ΣΗΜΕΙΩΣΕΙΣ

  • Though one channel UART is able to control up to 253 bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.
Two-Way Feedback

The Servos Will Provide Various Feedback Like Position, Load, Speed, And Input Voltage,
In Real Time

Dual Modes: Servo Or Motor
  • Precise rotation angle control, on servo mode

  • continuous rotation, on motor mode

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • Product Typr: SC15 serial bus servo
  • Torque:
  • Rotation Angle:
    • 180° (servo mode angle control)
    • 360° (motor mode continuous rotation)
  • POS Sensor Resolution: 180° / 1024
  • Mechanical Limited Angle: No Limit
  • Operating Voltage: 4.8-8.4V
  • Gear: High precision metal gear
  • Idling Speed:
    • 0.18sec / 60°@4.8V
    • 0.16sec / 60°@6V
  • ID Range: 0-253
  • Baurate: 38400bps ~ 1Mbps
  • Feedback: Position, Load, Speed, Input Voltage
  • Idling Current: 200 mA
  • Stalling Current: 1700 mA

Large Torque

Up To 17kg.Cm Torque On 8.4V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servos

  • for reference only, the JETANK robot is NOT included.

Details Introduction

Nylon and fiberglass case
Improved heat-resistance, size stability, rigidity, and mechanical performance

High strength aluminum servo wheels
Using T6061 aluminum alloy, good corrosion-resistance



High strength aluminum servo wheels
Using T6061 aluminum alloy, good corrosion-resistance



Κατασκευαστής
Waveshare
Part Number
SC15 Servo
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.066kg
Servo Standar
25T (Futaba/Feetech)
Λειτουργία Servo
Ψηφιακή
Μέγεθος Servo
Robot Servo
Περιστροφή
180°
Ροπή (6V)
15 kg.cm
Ταχύτητα (6V)
0.16sec/60°
Τύπος Γραναζιών
Μεταλλικά
