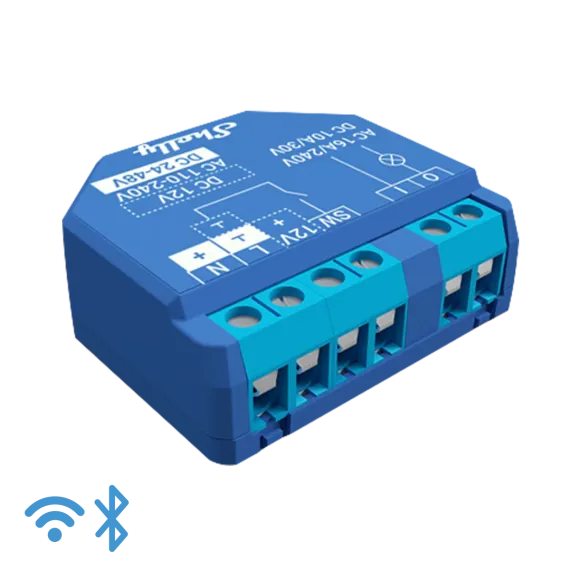

Shelly Plus 1

18-00016706
SPL1
CompanyShelly Part NumberSPL1
In Stock
Ships in 24 Hours
1850
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

Even better home automation experience and enhanced lighting control!

Automatization of the lights, garage door, irrigation system, bathroom fan, any old electrical appliances… you name it! Shelly Plus 1 has numerous applications providing enhanced smart home control. Small enough to fit behind every wall switch or wall socket, Shelly Plus 1 is retrofit and can be installed in less than 10 minutes.

Full compatibility

Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can command Shelly devices using just your voice!

Functions

  • Wi-Fi Operated
    Connect Shelly Plus 1 to your Wi-Fi network. No HUB required!
  • Bluetooth
    Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
  • Dry contacts
    Use it to control a wide range of devices and appliances.
  • Low and high voltage support
    Use a wide range of output voltage levels. Supports low voltages.
  • Smart schedules
    Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
  • Smart scenes
    Set custom scenes by combining Shelly Plus 1 with your other Shelly devices.

PHYSICAL

  • Size (HxWxD): 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
  • Weight: 26 g / 0.92 oz
  • Mounting: Wall console
  • Screw terminals max torque: 0.4 Nm / 3.5 lbin
  • Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
  • Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
  • Shell material: Plastic
  • Color: Blue

ENVIRONMENTAL

  • Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity 30 % to 70 % RH
  • Max. altitude 2000 m / 6562 ft

ELECTRICAL

  • Power supply: 110 - 240 VAC / 24 - 48 VDC / 12 VDC ±10%
  • Power consumption: < 1.2 W

OUTPUT CIRCUITS RATINGS

  • Max switching voltage AC: 240 V
  • Max switching voltage DC: 30 V
  • Max switching current AC: 16 A
  • Max switching current DC: 10 A

SENSORS, METERS

  • Temperature sensor: Yes

RADIO

  • RF band: 2400 - 2495 MHz
  • Max. RF power: <20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU

  • CPU: ESP32
  • Flash: 4 MB

FIRMWARE CAPABILITIES

  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • Scripting: mJS
  • MQTT: Yes
  • CoAP: No
Warranty
12 Months Manufacturer Warranty
