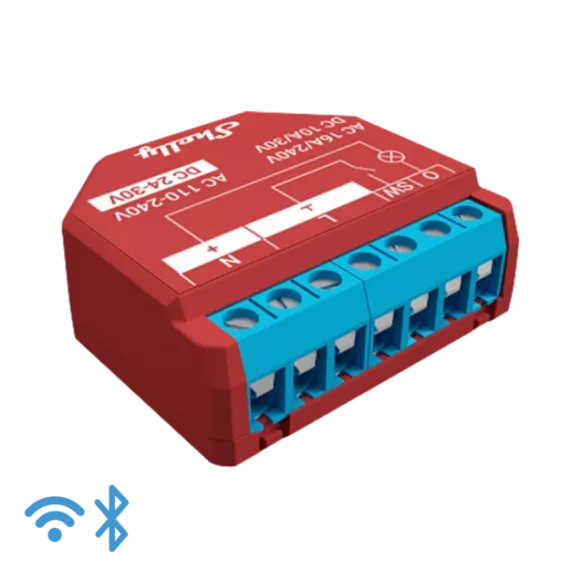

Shelly Plus 1PM

18-00016707
Shelly Plus 1PM
CompanyShelly Part NumberShelly Plus 1PM
In Stock
Ships in 24 Hours
2250
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

Next generation appliances control with precise power metering

From automatization of the lights to electrical appliances control, Shelly Plus 1PM provides precise power metering and free cloud data storage. Small enough to fit behind every wall switch or wall socket, Shelly 1PM is retrofit and can be installed in less than 10 minutes.

Full compatibility

Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can command Shelly devices using just your voice!

Functions

  • Wi-Fi Operated
    Connect Shelly Plus 1PM to your Wi-Fi network. No HUB required!
  • Bluetooth
    Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
  • Power monitoring
    Shelly Plus 1PM provides precise monitoring of power consumption.
  • Wide range of voltage support
    Use it to control a wide range of devices and appliances.
  • Smart schedules
    Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
  • Smart scenes
    Set custom scenes by combining Shelly Plus 1PM with your other Shelly devices.

POWER
  • Power supply AC 110-230V ±10%, 50/60Hz
  • Maximum load 16A
  • Power supply DC 24 – 30V
  • Channels 1 Channel
SPECIAL FUNCTIONS
  • Dry contacts No
  • Roller shutter mode No
  • Device temperature protection Yes
  • Overload protection Yes
  • Power measurement Yes
  • Working without a neutral line No
FEATURES
  • HTTP/HTTPS webhooks Yes
  • Custom scripts (mJs) Yes
  • Operational temperature -20°C to + 40 °C
  • Device power consumption < 1 W
  • Intelligent On/Off Yes
  • Local and remote control Yes
  • Sunrise/Sunset Yes
  • Weekly Schedule Yes
  • UL Listed option No
CONNECTIVITY
  • Wireless Yes
  • Wi-Fi Protocol 802.11 b/g/n
  • Wi-Fi Radio frequency 2412 - 2484 MHz
  • Wi-Fi Radio signal power 1mW
  • Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
  • Bluetooth Yes
DIMENSIONS
  • Size 42 x 38 x 17mm
Warranty
12 Months Manufacturer Warranty
Company
Shelly
G. Weight
0.001kg
