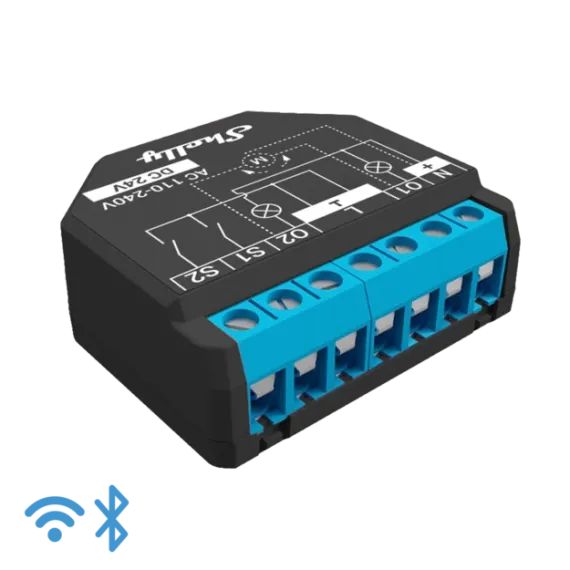

Shelly Plus 2PM

18-00016708
SPLUS2PM
CompanyShelly Part NumberSPLUS2PM
In Stock
Ships in 24 Hours
3280
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

One device - Different possibilities

  • 2 Channel Smart Relay - Automate lights and monitor their real-time power consumption
  • Cover (Roller) Control  - Automate and control the current position of roller shutters, curtains, garage doors, awnings, gates, electric sliding doors, pool covers, bi-directional AC motors

Full compatibility

Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can command Shelly devices using just your voice!

Functions

  • Wi-Fi Operated
    Connect Shelly Plus 2PM to your Wi-Fi network. No HUB required!
  • Bluetooth
    Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
  • Power monitoring
    Two integrated precise power meters allow you to monitor the consumption for each channel.
  • Cover (roller) control
    Control two-directional AC motors and set your desired position.
  • Smart schedules
    Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
  • Smart scenes
    Set custom scenes by combining Shelly Plus 2PM with your other Shelly devices.

Physical
  • Size (HxWxD): 37x42x16 ±0.5 mm
  • Mounting: Wall console
  • Screw terminals max torque: 0.4 Nm / 3.5 lbin
  • Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
  • Conductor stripped length: 5 to 6 mm
  • Shell material: Plastic
  • Color: Black
Environmental
  • Ambient temperature: -20 °C to 40 °C
  • Humidity 30 % to 70 % RH
  • Max. altitude 2000 m
Electrical
  • Power supply: 110 - 240 VAC / 24 VDC ±10%
  • Power consumption: < 1.4 W
Output circuits ratings
  • Max switching voltage AC: 240 V
  • Max switching voltage DC: 30 V
  • Max switching current AC: 10 A (per channel), 16 A (total), 18 A (total peak)
  • Max switching current DC: 10 A
Sensors, meters
  • Temperature sensor: Yes
  • Voltmeter (AC) Yes
  • Ammeter (AC) Yes
Radio
  • RF band: 2400 - 2495 MHz
  • Max. RF power: <20 dBm
  • Wi-Fi protocol: 802.11 b/g/n
  • Wi-Fi Range: Up to 30 m indoors and 50 m outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
  • Bluetooth Range: Up to 10 m indoors and 30 m outdoors (Depends on local conditions)
MCU
  • CPU: ESP32
  • Flash: 4 MB
Firmware capabilities
  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • Scripting: mJS
  • MQTT: Yes
  • CoAP: No
Warranty
12 Months Manufacturer Warranty
Company
Shelly
G. Weight
0.001kg
