Standard Gripper Kit B - Straight Mount

This is the Standard Gripper Kit B, a simple and durable robotics kit that is great for “getting a grip” on pretty much any robotics project!...
17-00637096
Gross Weight: 0.04kg
Company: Actobotics
Part Number: 637096
In Stock
Ships in 24 Hours
No stock in retail store
14.10
Without VAT 11.37
+
WISHLIST COMPARE

DESCRIPTION

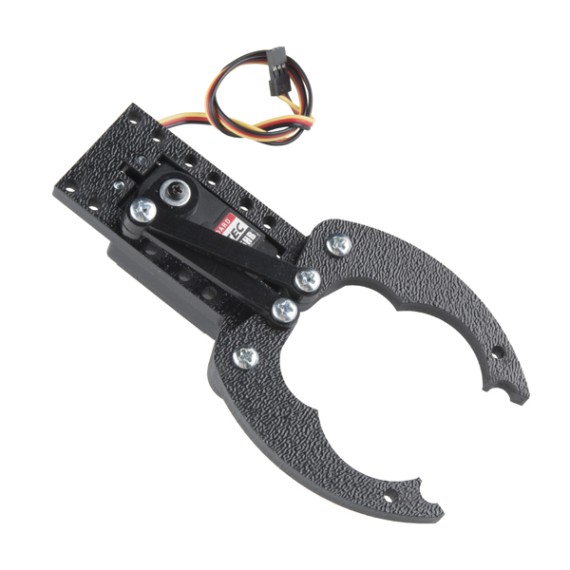

This is the Standard Gripper Kit B, a simple and durable robotics kit that is great for “getting a grip” on pretty much any robotics project! Designed for use with any standard size Hitec or Futaba servo, the gripper kit is easy to assemble and requires only a Phillips Head Screwdriver. This Standard Gripper is capable of opening an impressive 6" wide max, has an overall body length of 5" long with a 1.3" wide servo housing body, and offers 6-32 mounting thru-holes along the edges of the servo housing.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

Note: This kit does NOT include a servo. Check the Recommended Products section below for great standard size servo options.

Features:

  • Opening Width - 6" (152mm)
  • Mounting Hole ID - 0.1" (3.5mm)
