Waveshare DDSM Driver HAT (A) - Based on ESP32

31-00027806
DDSM Driver HAT (A)
Waveshare DDSM Driver HAT (A) - Based on ESP32

CompanyWaveshare Part NumberDDSM Driver HAT (A) HAT CompatibilityRaspberry Pi 4, Raspberry Pi 5 HAT TypeServo Driver
Upon Order
Available in 45-60 days
€2790
Waveshare
Our quantity discounts:
Quantity
10+
Price
€25.11
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

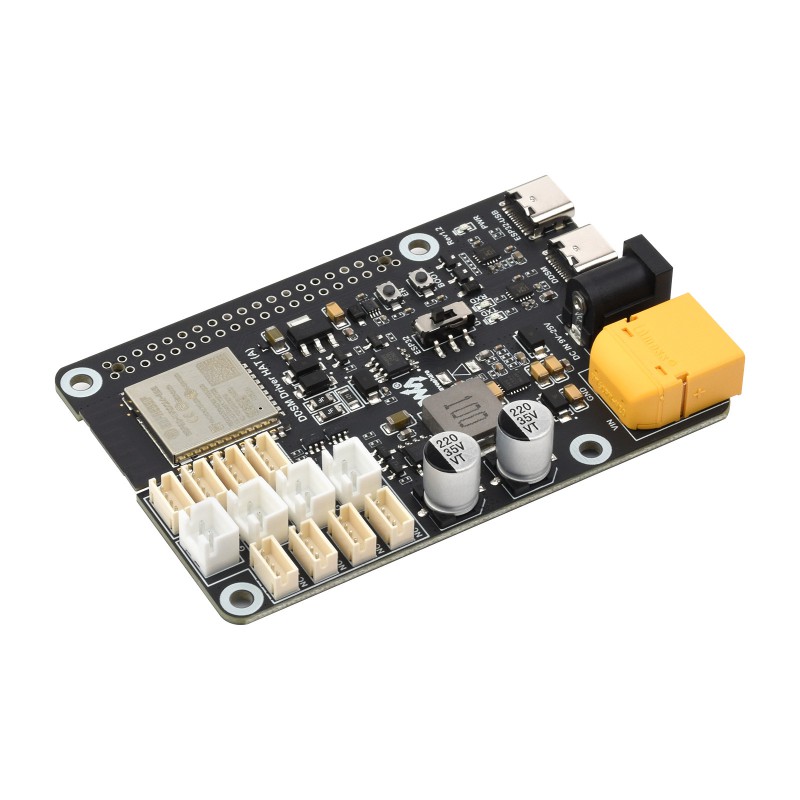

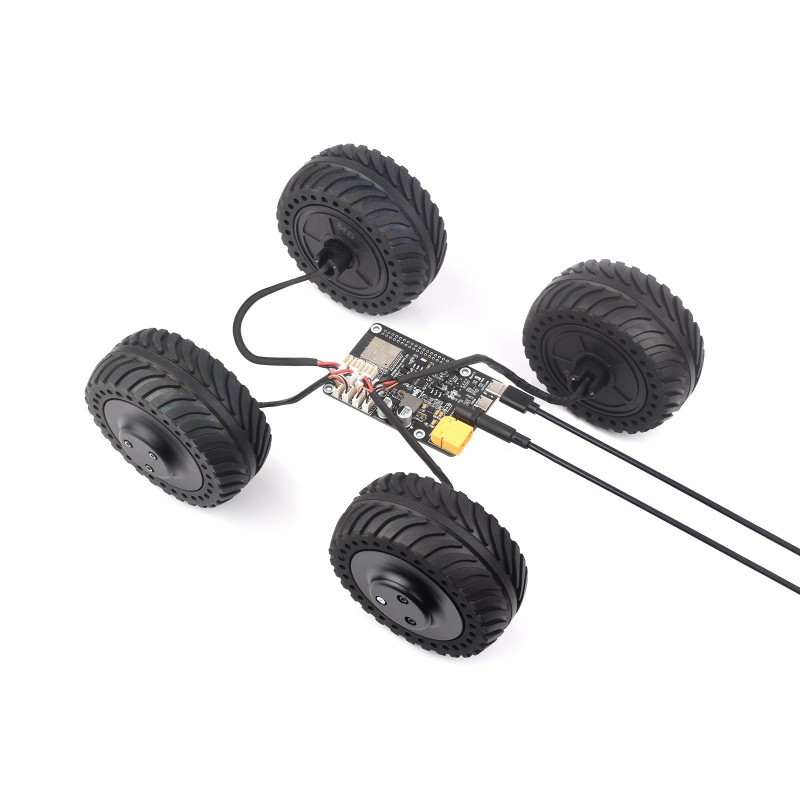

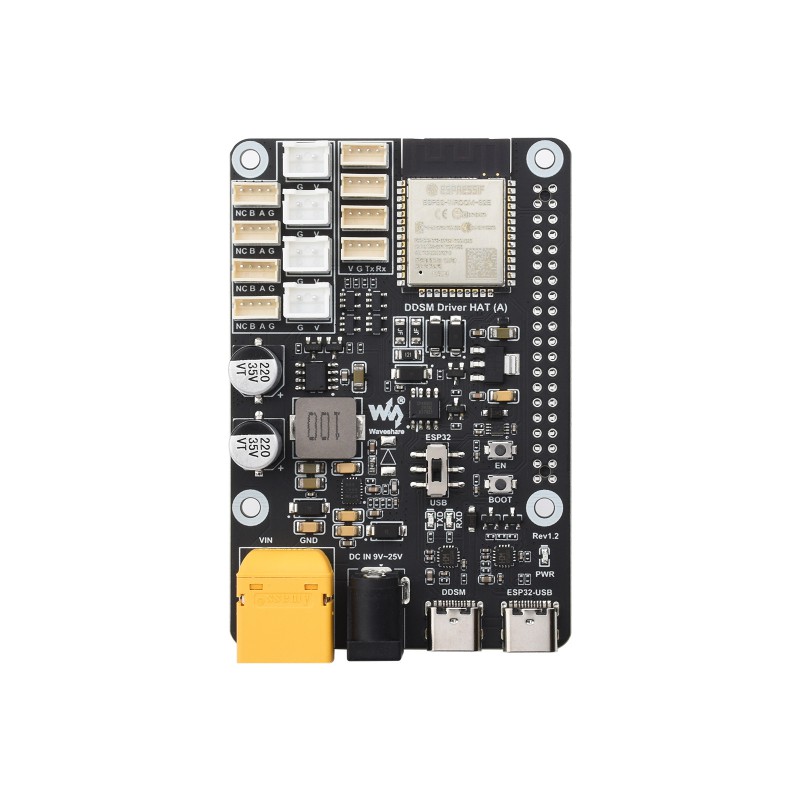

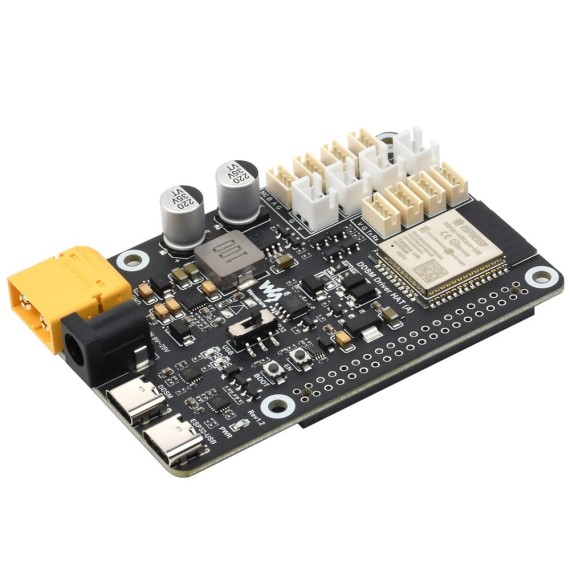

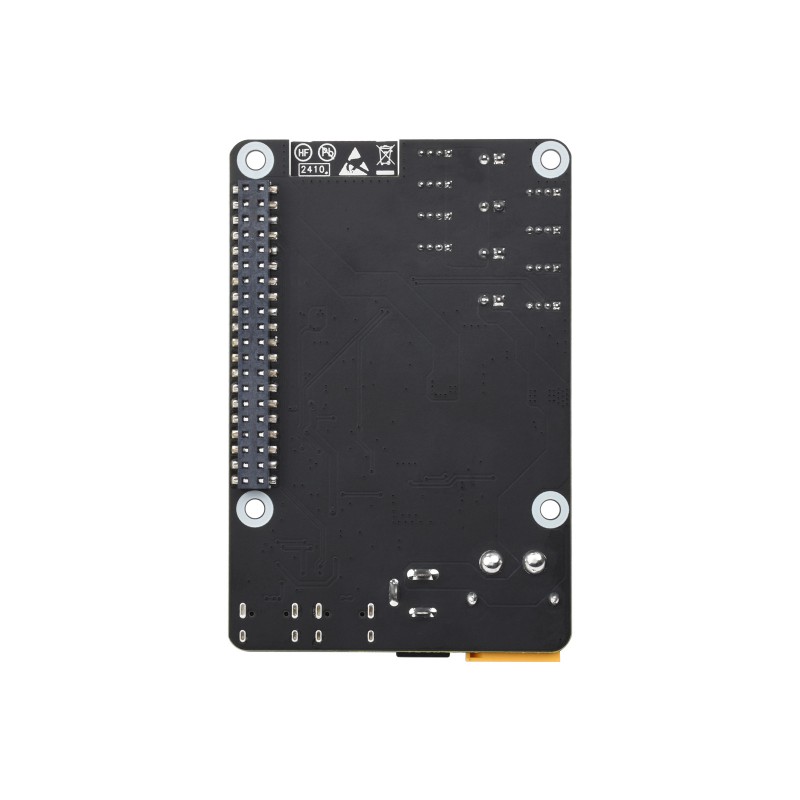

This is a driver board for the DDSM series direct drive servo hub motors, featuring 4×DDSM115 motor interfaces and 4×DDSM210 interfaces, integrated with an ESP32 and hub motor control circuit. We have open-sourced the hub motor control demos and the JSON communication interface. Users can connect via USB and use a host computer to send JSON-formatted commands to control the hub motors and receive JSON-formatted feedback (such as motor current, speed, temperature, etc.). Users can also perform secondary development, using it as a slave controller in robotic projects.

Key features

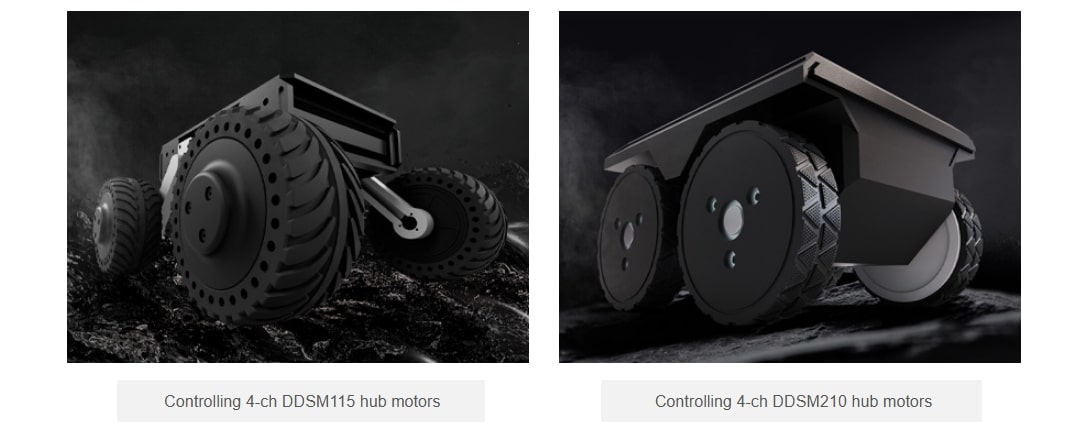

  • Suitable for DDSM series hub motors such as DDSM115 and DDSM210, onboard 4-ch DDSM115 motor interfaces and 4-ch DDSM210 motor interfaces
  • Provided DDSM hub motor control demo and SDK, easy to use
  • Supports multiple wired and wireless communication modes, supports JSON command interaction for easier control

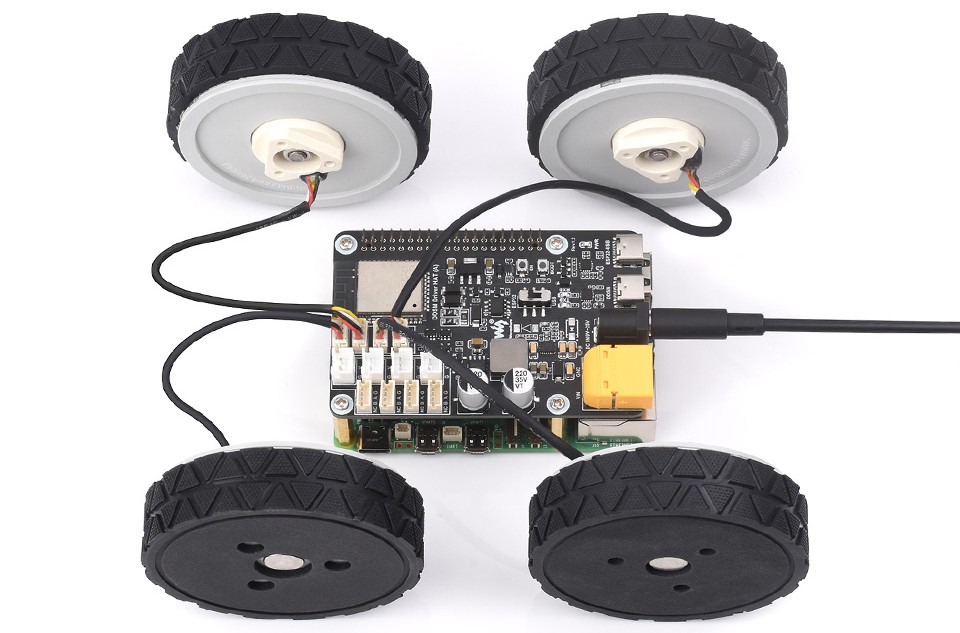

  • Supports connecting to Raspberry Pi, powering the Pi via integrated 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management
  • Integrated web application for controlling and setting the DDSM hub motors, more convenient for debugging
  • Supports controlling the DDSM hub motors directly via onboard Type-C port



Technical data
Controller moduleESP32
Power supply portXT60, DC5525
Power supplyDDSM115: 12-24V DC
DDSM210: 11~22V DC
Hub motor portDDSM115, DDSM210
Communication interfaceType-C ×2, UART
Wireless communication2.4G WiFi

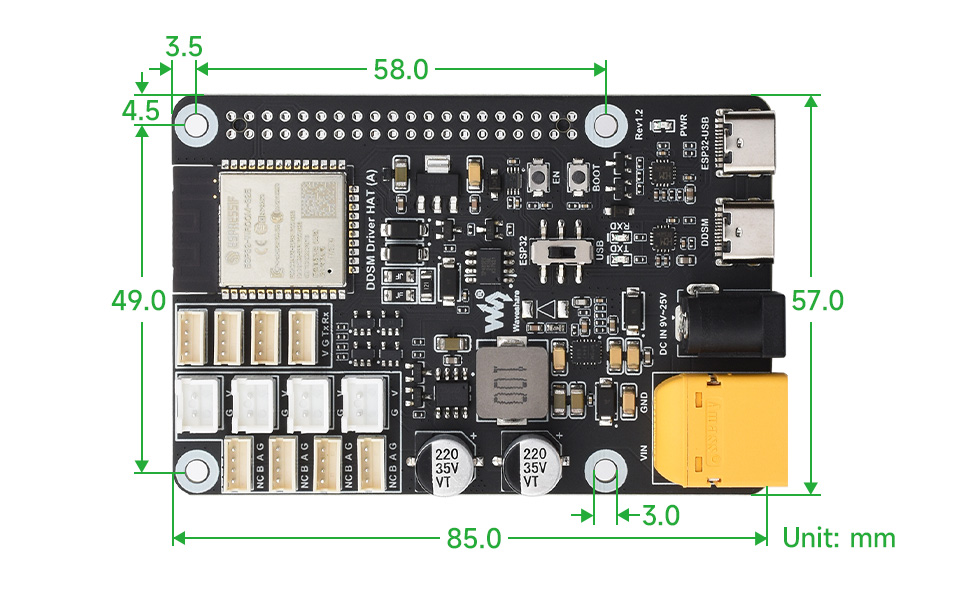

Mounting hole diameter3mm
Mounting hole spacing58×49mm
PCB size85×57mm
Wired control mode via USB cable
  • Using 115200 baudrate to communicate with ESP32 of the driver board
  • Supports sending commands in JSON format to set up and control the hub motors
  • Obtains feedback information in JSON format
  • Provided Python demo for the host to control the hub motors

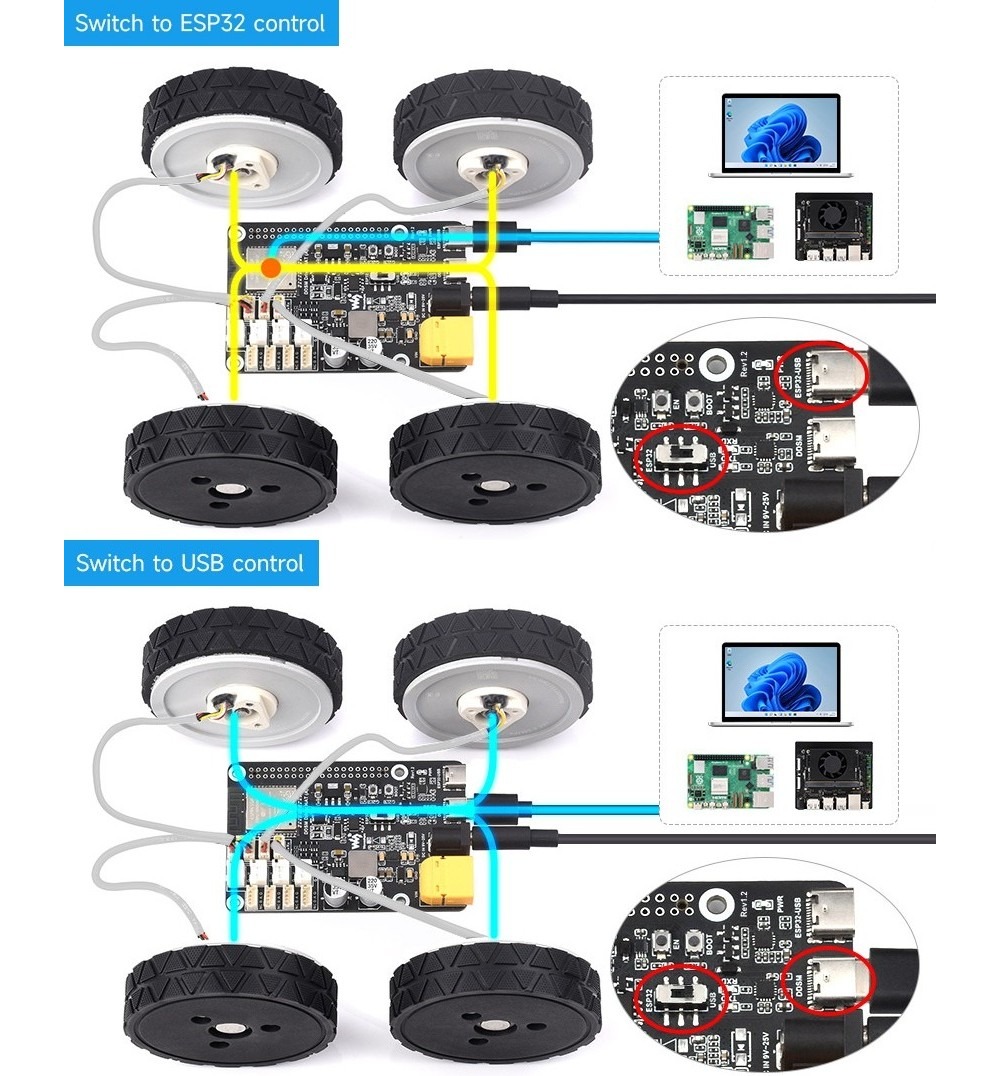

  • Connecting to the Type-C port with DDSM mark and switching to USB control, you can directly communicate with the hub motors, suitable for the users who have the ability to independently develop the driver program

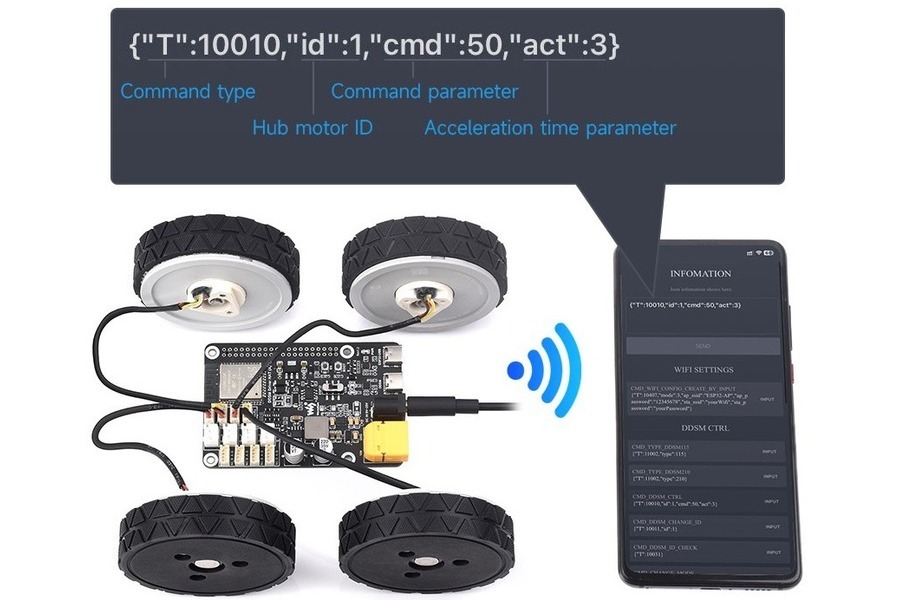

Wireless control mode via web application
  • The DDSM Driver HAT will automatically establish a hotspot after powering on
  • Allows users to connect and control the driver board via mobile phones, tablets and PCs with the cross-platform web application
  • Supports sending the JSON commands to the DDSM Driver HAT via web application
Hardware layout

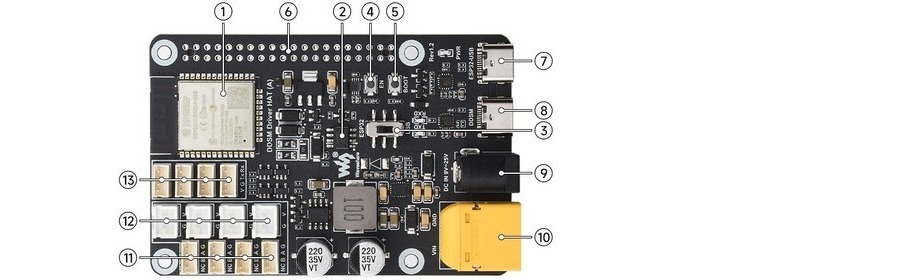

  1. ESP32 controller
  2. RS485 hub motor control circuit
  3. UART control switch
  4. Reset button
  5. BOOT button for entering downloading mode
  6. Raspberry Pi 40PIN header
  7. ESP32 Type-C port
  8. Hub motor Type-C port
  9. 5.5×2.5 DC power jack
  10. XT60 power supply connector
  11. RS485 hub motor headers
  12. Hub motor power supply headers
  13. UART hub motor headers (TTL level)

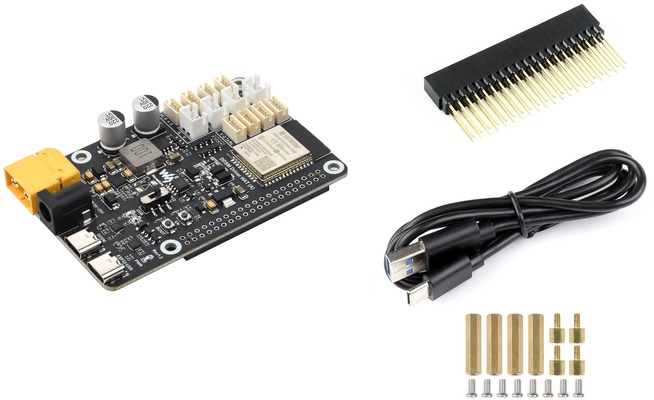

Package contents
  1. DDSM Driver HAT (A) ×1
  2. 2×20 pin header ×1
  3. USB Type-A to Type-C cable ×1
  4. Screws pack ×1
