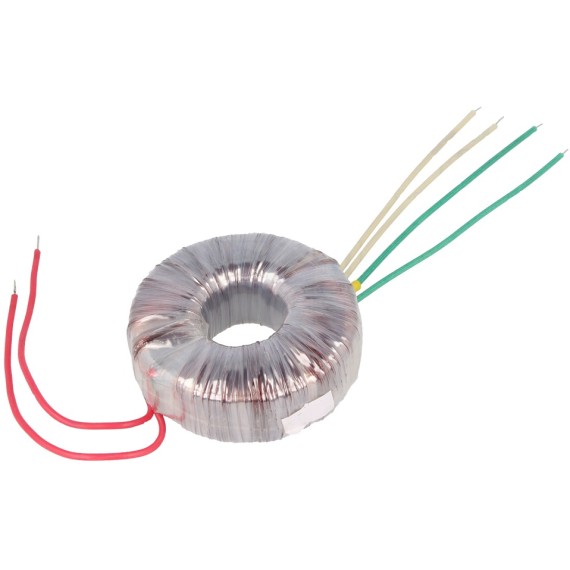

Toroidal Transformer 230V/2x24V 100VA

05-00010885
TST100/014
CompanyIndel Part NumberTST100/014
Upon Order
Available in 1-3 days
€3800
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

High quality open style toroidal transformers with single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.

  • Type of transformer: Toroidal
  • Power: 100VA
  • Primary voltage: 230V AC
  • Secondary voltage 1: 24V
  • Secondary voltage 2: 24V
  • Secondary winding current 1: 2.08A
  • Secondary winding current 2: 2.08A
  • Leads: Cables
  • IP rating: IP00
  • Insulation class: II
  • Thermal class: Ta40B
  • Conform to the norm: PN-EN 61558
  • Electrical insulation strength: 4kV/60s
  • Small size and low weight compared with traditional stacked lamination types
  • Extremely low level of radiated magnetic field
  • Very low induced noise (hum)
  • Very low iron loss
  • Double insulated primary leads
Company
Indel
Part Number
TST100/014
Warranty
Component, not covered by warranty
G. Weight
0.001kg
Type of transformer
Toroidal
Power
100 VA
Number of outputs
2
Secondary voltage 1
24 V
Secondary voltage 2
24 V
Secondary winding current 1
2.08 A
Secondary winding current 2
2.08 A
Mounting
Cables
