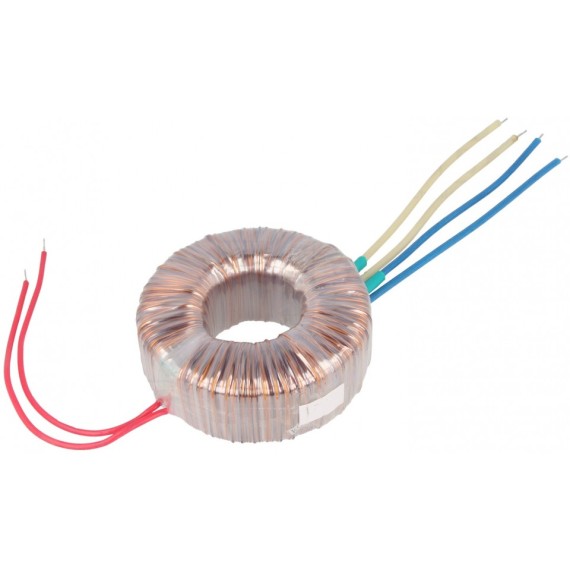

Toroidal Transformer 230V/24V 160VA

by INDEL
High quality open style toroidal transformers with single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or...
05-00010884
Company: INDEL
Made in: EU
Out of Stock
Product out of stock
No stock in retail store
26.00
Without VAT 20.97

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

High quality open style toroidal transformers with single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.

SPECIFICATIONS

Type of transformer:
Toroidal
Power:
160VA
Number of outputs:
2
Secondary voltage 1:
24V
Secondary voltage 2:
24V
Secondary winding current 1:
3.33A
Secondary winding current 2:
3.33A
Mounting:
Cables

Notes

  • Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

EXTRA SPECIFICATIONS

  • Type of transformer: Toroidal
  • Power: 160VA
  • Primary voltage: 230V AC
  • Secondary voltage 1: 24V
  • Secondary voltage 2: 24V
  • Secondary winding current 1: 3.33A
  • Secondary winding current 2: 3.33A
  • Leads: Cables
  • IP rating: IP00
  • Insulation class: II
  • Thermal class: Ta40B
  • Conform to the norm: PN-EN 61558
  • Electrical insulation strength: 4kV/60s

FEATURES

  • Small size and low weight compared with traditional stacked lamination types
  • Extremely low level of radiated magnetic field
  • Very low induced noise (hum)
  • Very low iron loss
  • Double insulated primary leads

Dimensions

  • Diameter: 115mm
  • Height: 45mm
  • Cable length: 150mm
  • Weight: 1.7kg

Contents

  • 1x Toroidal Transformer
  • 1x Lid
  • 2x Rubber washer
