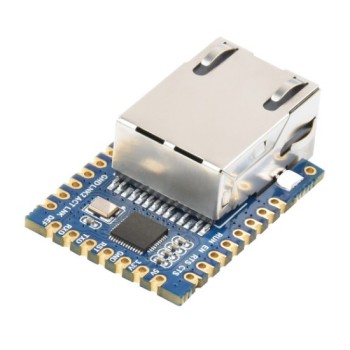

TTL UART to Ethernet Mini Module

από WAVESHARE
TTL UART To Ethernet Mini Module, Castellated Holes With Immersion Gold Design, Highly Integrated Packaging TTL UART To Ethernet Mini Module Compact...
31-00024276
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: UART TO ETH (B)
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
14.80
Χωρίς ΦΠΑ 11.94
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 13.32

ΠΕΡΙΓΡΑΦΗ

TTL UART To Ethernet Mini Module, Castellated Holes With Immersion Gold Design, Highly Integrated Packaging

TTL UART To Ethernet Mini Module
Compact size | Easy to integrate | Low power consumption
Faster To Be Integrated Into Industrial, IoT, And Security Applications



Multi Communication Modes
Supports TCP Server / TCP Client / UDP Multicast / UDP Mode




ΣΗΜΕΙΩΣΕΙΣ

  • This product is without pre-soldered header by default.

Compact And Easy Integration
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications

Modbus Gateway Support
Suitable For Modbus Gridding Upgrade, Can Be Used With Specific Configuration Software

User-Defined Heartbeat/Registration Packet
Easy For Cloud Communication And Device Identification

NTP Protocol Support
Getting Network Time Info For Serial Output Or Data Upload

Supports Web And Host Computer Configuration

Interfaces And Indicators
Adapting Control Pins For Easy Embedding Or Connecting To User Devices And Various MCU Master Devices. With Multiple Indicators, Easy To Monitor The Operating Status Of The Module

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
UART TO ETH (B)
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Basic Function: Bi-directional transparent data transmission between serial port and Ethernet
  • Ethernet: Common network port
  • Isolation Protection: N/C
  • Serial Port: TTL
  • Power Supply: Pinheader / pads
  • Dimensions: 34x23x11.5mm
  • Application Scenarios: Can be used as Serial server, Modbus gateway, MQTT gateway, suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
  • Serial Specification:
    • Baudrate: 300 ~ 115200 bps
    • Parity Bit: None, Odd, Even, Mark, Space
    • Data Bit: 5 ~ 9 bits
    • Flow Control: Support
  • Software:
    • Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
    • Configuration: Host, web browser, device management functions library
    • Communication Method: TCP/IP direct communication, VCOM
    • Operating Mode: TCP server, TCP client, UDP Group, UDP
    • Modbus Gateway: Modbus TCP to RTU
    • Other Functions: User-defined heartbeat/registration packet, User-defined web page...
  • Other:
    • Operating Temperature: -40℃ ~ 85℃
    • Humidity Range: 5% ~ 95% relative humidity
