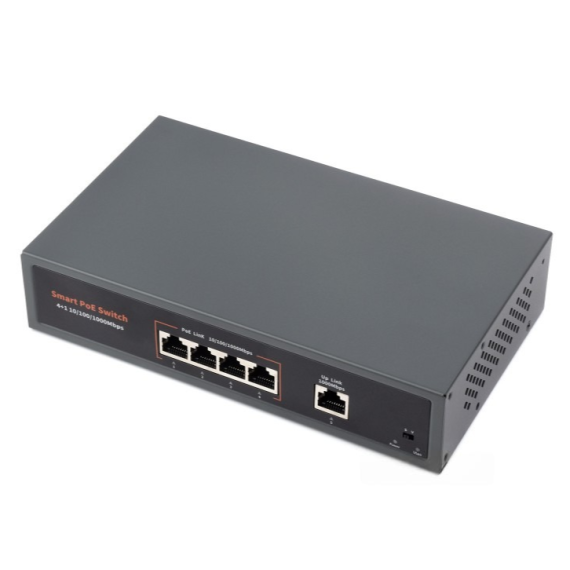

Waveshare Gigabit Ethernet Switch – 4-Ch PoE+ Port 120W

Κωδικός:

31-00027430

Part Number: Gigabit-PoE-Switch-120W (for EU)

ΚατασκευαστήςWaveshare Part NumberGigabit-PoE-Switch-120W (for EU)

Διαθέσιμο

Αποστολή σε 24 ώρες

€32⁰⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€28.80

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

The Gigabit-PoE-Switch-120W is designed to meet PoE (Power over Ethernet) power supply requirements, adopts the latest generation high-speed Ethernet switching chip and high backplane bandwidth (also known as switching bandwidth) design, features ultra-fast data processing capability, enhancing data transmission performance.

Equipped with 4× PoE RJ45 downlink ports and 1× RJ45 uplink port, up to 30W per port, with a total power of 120W peak. It can automatically detect and identify IEEE 802.3af/at-compliant devices and provides power supply through the network cable.

Features at a glance

4× 10/100/1000Mbps RJ45 PoE ports (support PoE+ power supply) with auto MDI/MDI-X support
1× 10/100/1000Mbps RJ45 uplink port
Total PoE power is up to 120W with each port providing power up to 30W
Supports priority mechanism that can automatically detect and identify PoE devices, providing power supply through the Ethernet cable with priority, without damaging non-PoE devices.
Supports various PoE and non-PoE network devices such as PC, printer, smart TV, camera, wireless AP, smart home device, and Raspberry Pi, etc.
Suitable for PoE applications such as security monitoring, telephone conference systems, wireless coverage, etc.
Built-in high-efficiency heatsink, fanless design, lower indoor noise

Technical data

Network standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ports	4× 10/100/1000Mbps RJ45 PoE ports 1× 10/100/1000Mbps RJ45 uplink port
PoE power supply	4× 10/100/1000Mbps RJ45 ports with PoE+ power supply support Total PoE power is up to 120W with each port providing power up to 30W
PoE connection	Supports 1/2+, 3/6- end-span and 4/5+, 7/8- mid-span wiring pairs
Performance	Store and forward, supports 2K MAC address table depth, with 12Gbps backplane bandwidth
Forwarding rate	10BASE-T: 14880pps/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port
Port Functions	Power priority mechanism, fast forwarding, MAC address auto-learning and aging, IEEE802.3x full-duplex flow control and half-duplex backpressure flow control
Operation temperature	Operation Temperature: -20℃ ~ 55℃ Storage Temperature: -20℃ ~ 75℃
Power	Built-in power adapter Input: AC/IN 110V ~ 240V Output: DC 52V±5% 2.3A, ≤120W
Enclosure	Metal material
Dimensions	200mm × 118mm × 44mm (L×W×H)
