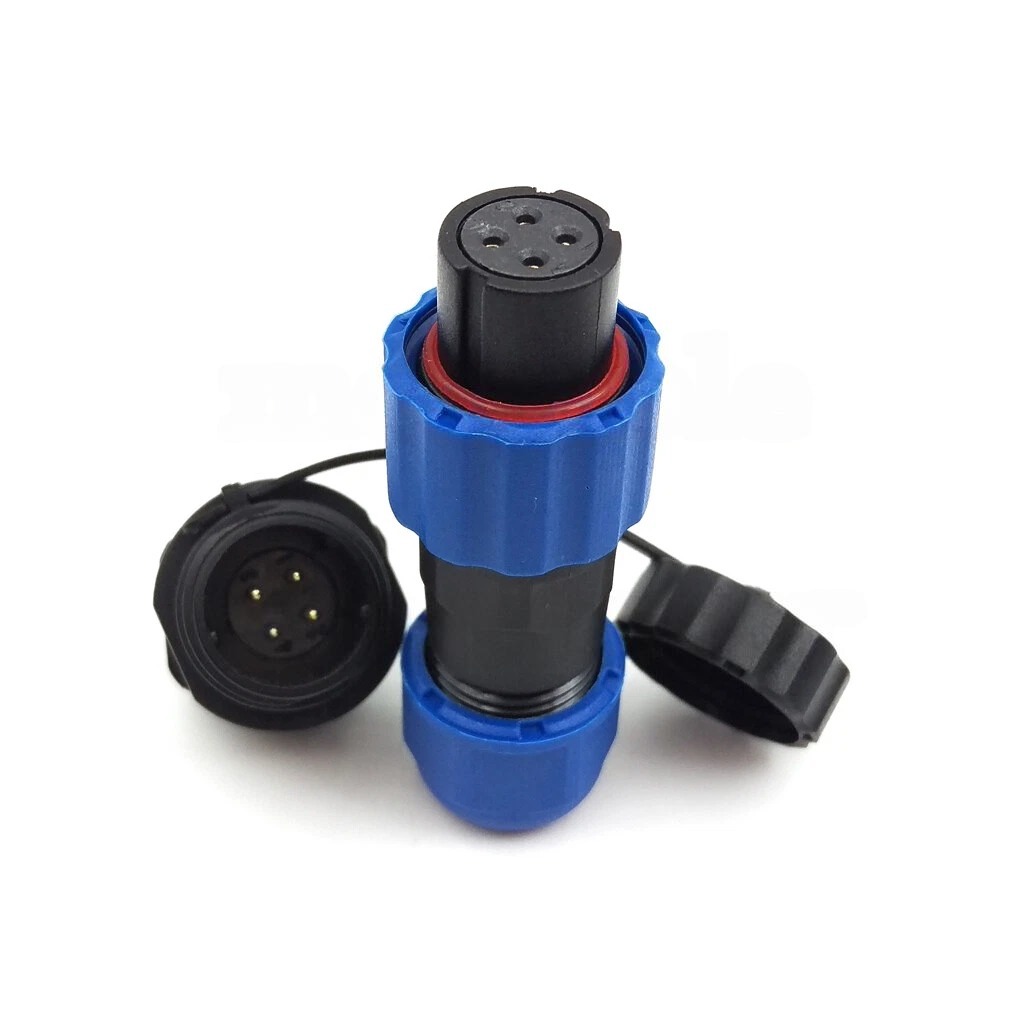

Waterproof Connector IP68 13mm 4-Pin - Set

by OEM
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.Design with a black short rubber tube on...
39-00011832
Gross Weight: 0.01kg
Warranty: Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
6.00
Without VAT 4.84
+
Our quantity discounts:
Quantity 10+
Price 4.80
WISHLIST COMPARE

DESCRIPTION

Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.Waterproof and really a great apparatus electronic connector.

  • IP68 connector for indoor and outdoor use.
  • Round form sealed connector.
  • In the harsh environment can provide a safe and reliable connection.
  • Even in dust and water conditions can be heavily used.



THE PACKAGE INCLUDES

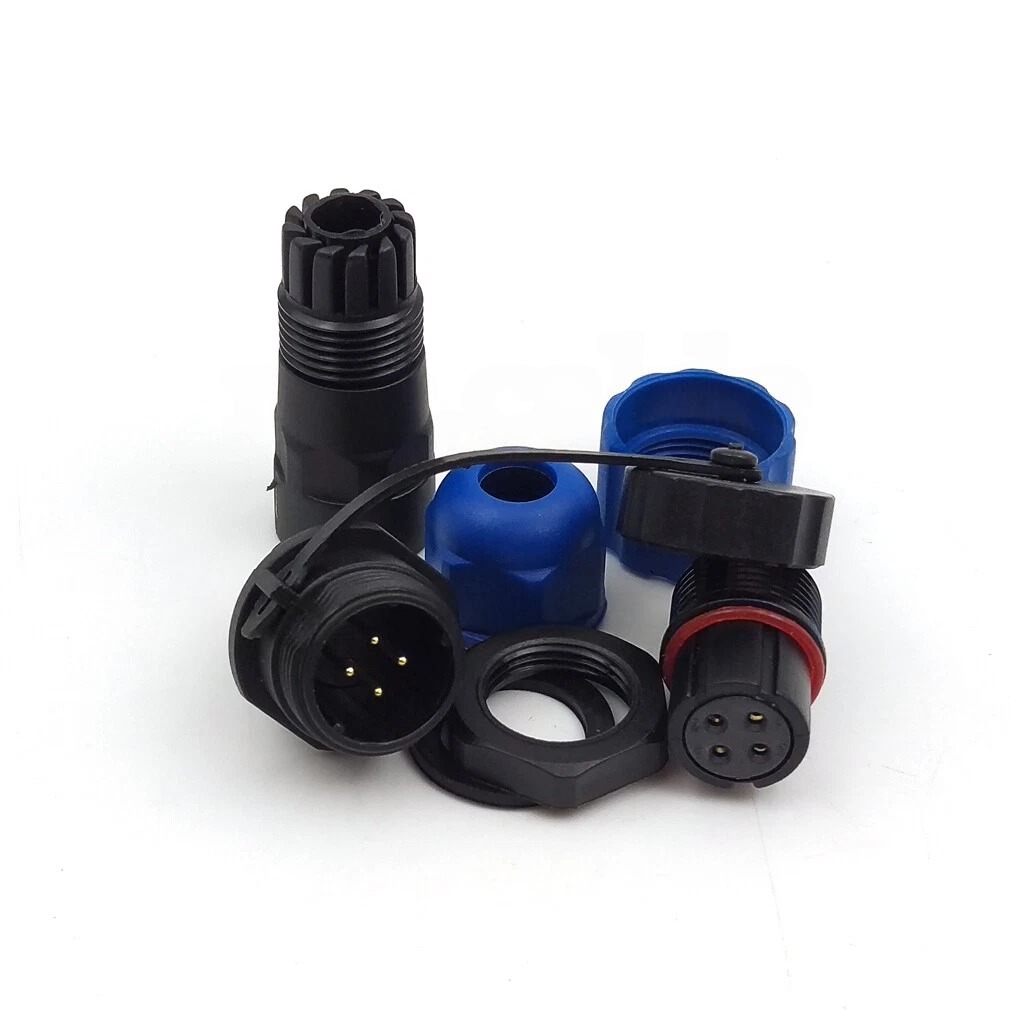

  • 1x Female Connector for panel mount with cover
  • 1x Male Connector for cable

SPECIFICATIONS

Connector Type:
  • SD13 Series
Connector Type:
  • Female
  • Male
Number of Pins:
4 Pin
Warranty:
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company:
OEM
Gross Weight:
0.014kg
Made in:
China
Contact Current Max. :
5A

EXTRA SPECS

  • Model: SD13-4
  • Pin Number: 4 pins
  • PinThread Dia: 13mm
  • Rated Voltage: 250V
  • Rated Current: 5A
  • Coupling: Thread couping
  • Shell Material: Thermoplastic PA66, PA6
  • Contact Material: Brass (Gold plated)
  • Color: Blue, Black
  • Contact Resistance: 5Mohm
  • Insulation Resistance: 2000Mohm
  • Temprtature Range: -25...85C
