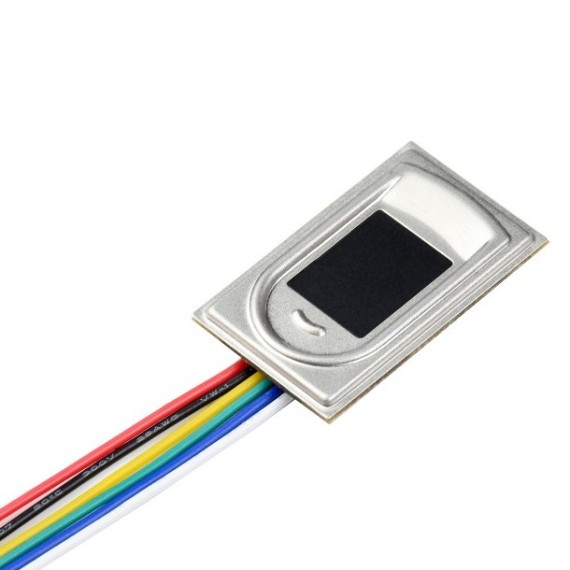

Waveshare Αισθητήρας Δακτυλικών Αποτυπωμάτων (Rectangle-shaped Capacitive)

από WAVESHARE
Based on a high performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the   UART Fingerprint Sensor (E)...
31-00022059
Ογκομετρικό βάρος: 0.03kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 307006
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
35.90
Χωρίς ΦΠΑ 28.95
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 32.31

ΠΕΡΙΓΡΑΦΗ

Based on a high performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (E) features functionalities like fingerprint enrolling, image acquisition, feature finding, fingerprint matching, and so on. Without any knowledge about the complicate fingerprinting algorithm, all you need to do is just sending some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.

  • Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure
  • Commercial fingerprinting algorithm, supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, and fingerprint feature uploading, stable performance, fast identification
  • Capacitive sensitive detection, just touch the collecting window lightly for fast verification
  • Highly integrated hardware, processor and sensor in one small chip, suitable for small size applications
  • Embedded human sensor, the processor will enter sleep automatically, and wake up when touching, lower power consumption
  • Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. UART Fingerprint Sensor (E) x1
  2. 6PIN squid wire x1
12



ΣΗΜΕΙΩΣΕΙΣ

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
307006
Μικτό Βάρος:
0.031kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • ID
Τυπική Τάση Εισόδου:
  • 3.3VDC
Ρεύμα Λειτουργίας:
50mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • UART

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Sensor type: capacitive touch sensor
  • Resolution: 508DPI
  • Image pixels: 160×160
  • Image grey scale: 8
  • Sensor size: 11.2 × 12.2 mm
  • Fingerprint capacity: 3000
  • Matching time: <200ms (1:N, and N≤100)
  • False acceptance rate: <0.001%
  • False rejection rate: <0.1%
  • Operating voltage: 3.3V
  • Operating current: <50mA
  • Sleep current: <16uA
  • Anti-electrostatic: contact discharge 8KV / aerial discharge 15KV
  • Interface: UART
  • Baudrate: 19200 bps
  • Operating environment:
    • Temperature: -20°C~70°C
    • Humidity: 40%RH~85%RH (no condensation)
  • Storage environment:
    • Temperature: -40°C~85°C
    • Humidity: <85%RH (no condensation)
