Waveshare Αισθητήρας Θερμοκρασία/Υγρασίας/Βαρομετρικής Πίεσης I2C ή SPI - BME688

Κωδικός:

31-00024244

Part Number: BME688 Environmental Sensor

ΚατασκευαστήςWaveshare Part NumberBME688 Environmental Sensor

Διαθέσιμο

Αποστολή σε 24 ώρες

€27⁶⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€24.84

+ −

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

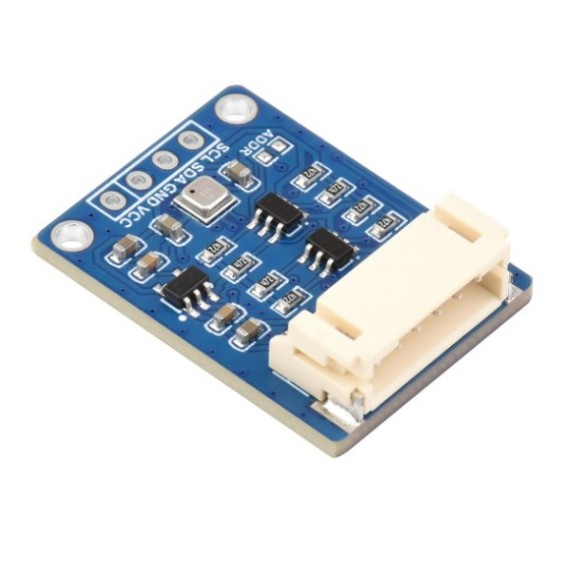

BME68X Environmental Sensor

Supports temperature, humidity, barometric pressure and gas detection
Supports Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32...

Version Options

Supports I2C And SPI Interfaces Control
For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

PIN	I2C	SPI
CS	NC	SPI chip selection, low active
ADDR/MISO	I2C address chip selection high level (default) address: 0x77 Shorting onboard ADDR pad, the address is 0x76	SPI data master input/slave output
SCL/SCK	I2C clock	SPI clock input
SDA/MOSI	I2C data	SPI data master output/slave input
GND	Ground
VCC	3.3V/5V power supply

Detection Support: Barometric pressure, Environmental temperature, Relative humidity, VOC and VSC gas change detection (supports IAQ calculation in combination with the software package, and integrated AI function)
Communication Interfaces: I2C and SPI
Temperature Sensing:
- Range: -40~85°C
- Accuracy: ±0.5℃ (0~65℃)
Humidity Sensing:
- Range: 0~100%RH
- Accuracy: ±3%RH
Barometric Pressure Sensing:
- Range: 300~1100 hPa
- Accuracy: ±0.6hPa (0~65℃)
Gas Sensing: Supports VOC and VSC gas change detection
Dimensions: 27x20mm

Onboard BME68X sensor to measure temperature, humidity, barometric pressure, and gas
Supports I2C communication, I2C address configurable, with I2C bus cascading support
Supports SPI communication, enabled via CS pin (I2C bus by default)

Onboard voltage translator, compatible with 3.3V/5V level
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)
