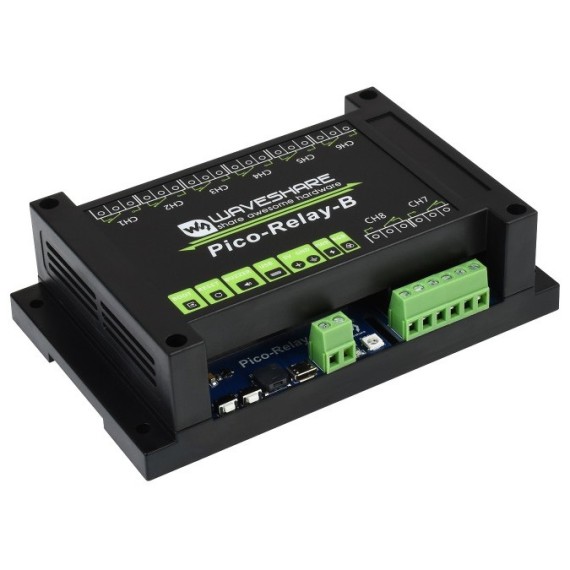

Waveshare Pico Industrial 8-Ch Relay Module

από WAVESHARE
Βιομηχανική μονάδα ρελέ 8 καναλιών για Pico. Με ενσωματωμένες προστασίες: Power Supply Isolation & Photocoupler Isolation. Συμβατότητα με pin header Raspberry Pi Pico. Ενσωματωμένo Female Pin Header για άμεση προσάρτηση στο Raspberry Pico!
31-00020218
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 20218
Χώρα Προέλευσης: Κίνα
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
23.90
Χωρίς ΦΠΑ 19.27
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 21.51

ΠΕΡΙΓΡΑΦΗ

Industrial 8-Channel Relay Module For Pico

Embedded Protections: Power Supply Isolation & Photocoupler Isolation

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Enclosure Design

ABS Protection Enclosure With Rail-Mount Support, Easy To Install, Safe To Use

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. ABS protection enclosure (top and bottom) x1
  2. Pico-Relay-B x1
  3. Screwdriver x1
  4. Screws pack x1

What's On Board

  1. Raspberry Pi Pico header
  2. Relay screw terminal
    for connecting external devices
  3. Power supply screw terminal
    the multi relays are connected in parallel
  4. Pogo pins
  5. USB communication port
    connected via pogo pins
  6. BOOT key
    connected via pogo pins
  7. Reset key
    Pico reset
  8. Passive buzzer
    controllable sound frequency
  1. Power indicator
  2. WS2812
    RGB LED, cool!
  3. 8-channel quality relays
    contact rating per channel: ≤10A 250V AC or ≤10A 30V DC
  4. Relay operating indicator
  5. Photocoupler isolation
    prevent interference from external high-voltage circuit connected to the relay
  6. Power supply isolation
    provides stable isolated voltage, needs no extra power supply for the isolated terminal
  7. Thickened tracks
    allows large current devices

Pinout Definition

ΣΗΜΕΙΩΣΕΙΣ

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Automation
Κατασκευαστής
:
WAVESHARE
Part Number:
20218
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Συμβατό Raspberry:
  • Pico
Τάση Πηνίου:
30VDC
Μέγιστο Φορτίο:
10A
Τύπος / Διαμόρφωση Επαφών:
  • SPDT
  • Module

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 5V
  • Relay Channel: 8 ch
  • Communication Protocol: USB
  • Communication Interface: Micro USB
  • Contact Form: 1NO 1NC

ΔΥΝΑΤΟΤΗΤΕΣ

  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
  • High quality relay, contact rating: 10A 250V AC or ≤10A 30V DC
  • ABS protection enclosure with rail-mount support, easy to install, safe to use
  • Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
  • PWR indicator, RGB LED, and passive buzzer outside the enclosure
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
