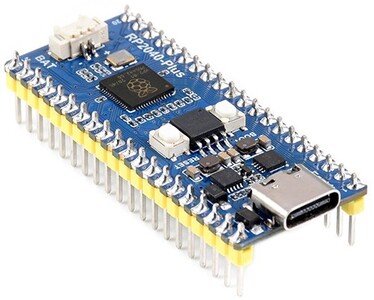

Waveshare RP2040 Plus

RP2040-Plus, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040 Dual-Core Arm Processor Dual-Core Arm...
31-00020290
Company: Waveshare
Part Number: RP2040-Plus
Made in: China
Out of Stock
Product out of stock
Low stock in store
11.00
Without VAT 8.87

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

RP2040-Plus, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

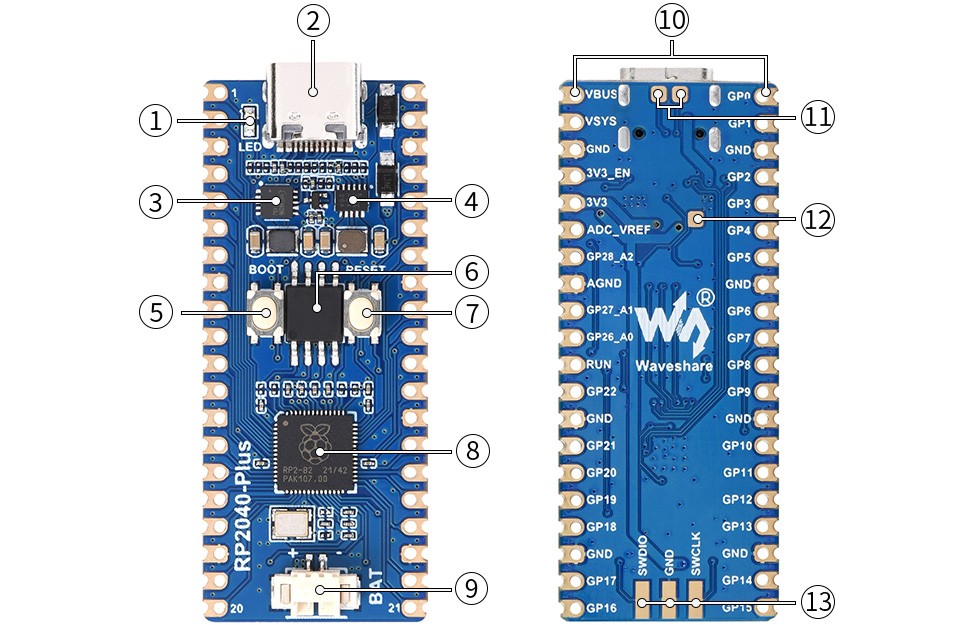

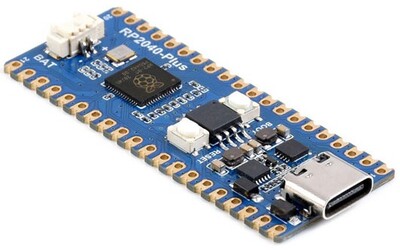

What's On Board

  1. LED
    user LED (not power indicator)
  2. ETA6096
    high efficiency Lithium battery recharge manager
  3. TPS63000
    high efficiency DC-DC buck-boost chip
  4. USB Type-C connector
  5. BOOT button
    press it when resetting to enter download mode
  6. W25Q32JVSSIQ
    4MB NOR-Flash
  7. RESET button
  1. RP2040
    dual-core processor, up to 133MHz operating frequency
  2. Battery header
    MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time

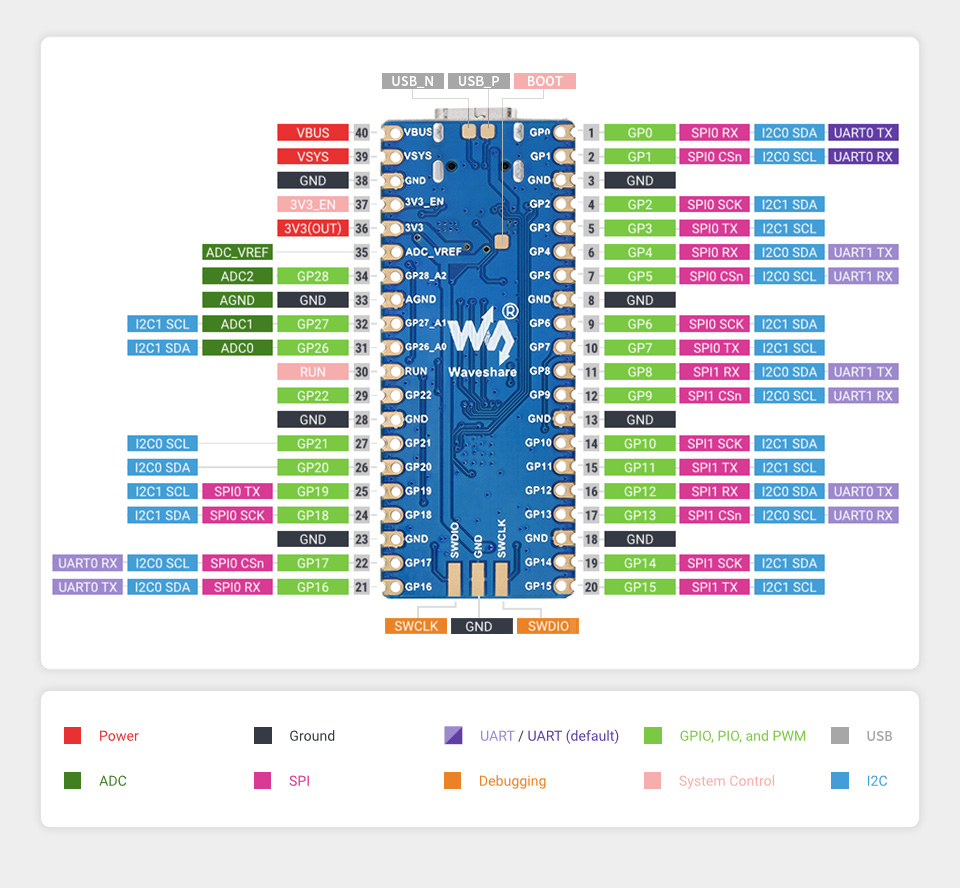

  3. Pinout
    compatible with Raspberry Pi Pico
  4. USB test points
    connecting to USB interface
  5. BOOT test point
    connecting to BOOT button
  6. DEBUG points

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.

As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.

26x Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

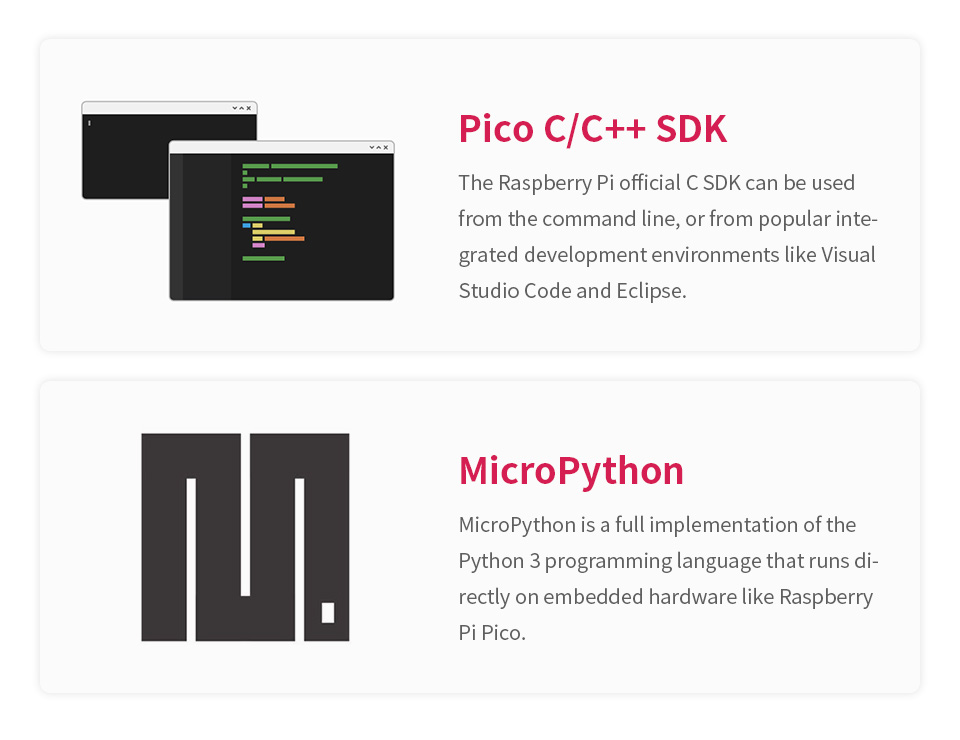

C/C++,MicroPython Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

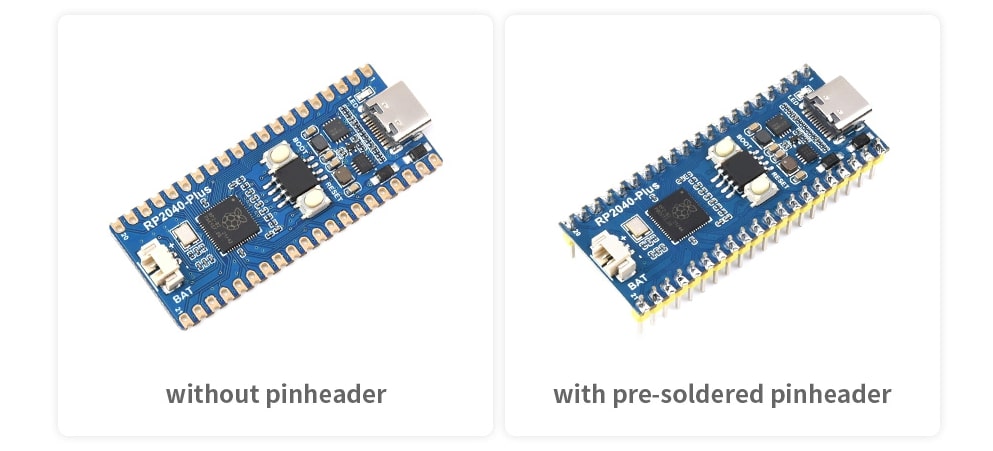

Selection Guide

BRAND Raspberry Pi Waveshare
PRODUCT
Original

Mini ver.

LCD ver.

Plus ver.
PROCESSOR Raspberry Pi official RP2040 microcontroller
REGULATOR RT6150 (DC-DC, 800mA) ME6217 (LDO, 800mA) TPS63000 (DC-DC, 1800mA)
USB Micro USB Type-C
FLASH 2MB 4MB
BATTERY HEADER N/A Yes(concurrent recharging and powering)
INTEGRATED LCD N/A 0.96inch IPS LCD N/A

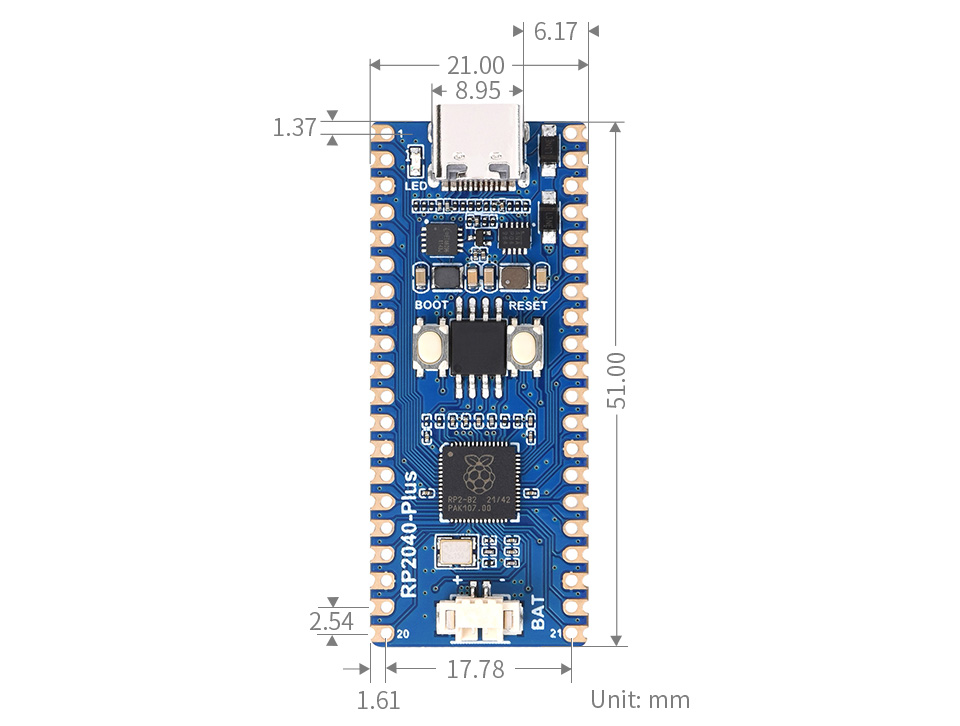

SPECIFICATIONS

Raspberry Compatible:
  • Pico

SPECIFICATIONS

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 4MB of on-board Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
