Waveshare RP2040 Tiny

31-00024664
RP2040-Tiny
ΚατασκευαστήςWaveshare Part NumberRP2040-Tiny
Εξαντλημένο
€560
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€5.04
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

RP2040-Tiny Development Board

Based On RP2040, USB Port Adapter Board Optional

Version Options

RP2040-Tiny-Kit
Development board + RP2040-Tiny-Adapter + FPC cable		 RP2040-Tiny
The development board only

Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

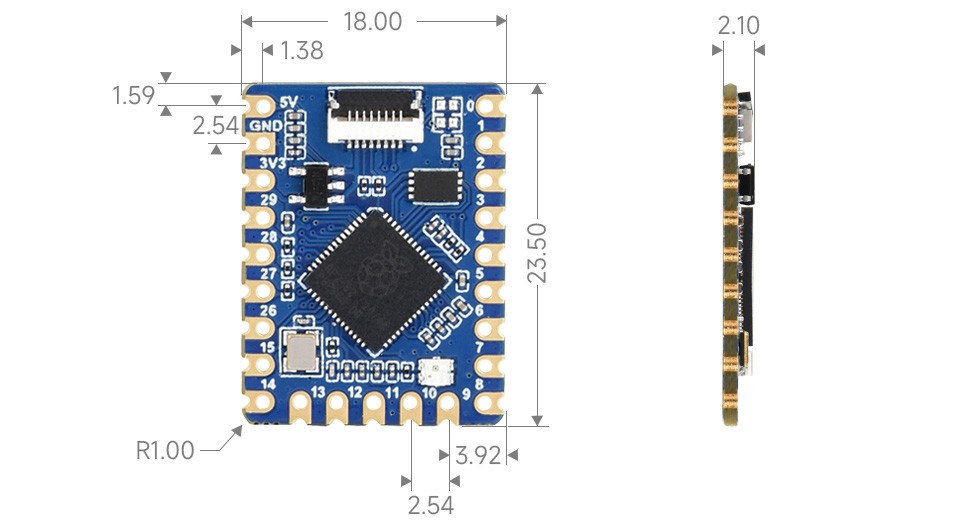

Compact Size, Separate Adapter Board Design
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications

Adapting USB Type-C Port Via Adapter Board

Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

20× Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

*Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.

What's On Board

  1. FPC connector
    0.5mm pitch 8PIN
  2. RT9193-33
    500mA low dropout, low noise, ultra-fast LDO
  3. W25Q16JVUXIQ
    2MB NOR-Flash
  1. RP2040
    dual-core processor, up to 133MHz operating frequency
  2. WS2812
    RGB LED Indicator
  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 20 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Κατασκευαστής
Waveshare
Part Number
RP2040-Tiny
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.003kg
