Waveshare RPi 4 Port USB Hub

Κωδικός:

31-00012694

Part Number: 12694

ΚατασκευαστήςWaveshare Part Number12694

Διαθέσιμο

Αποστολή σε 24 ώρες

€9⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€8.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

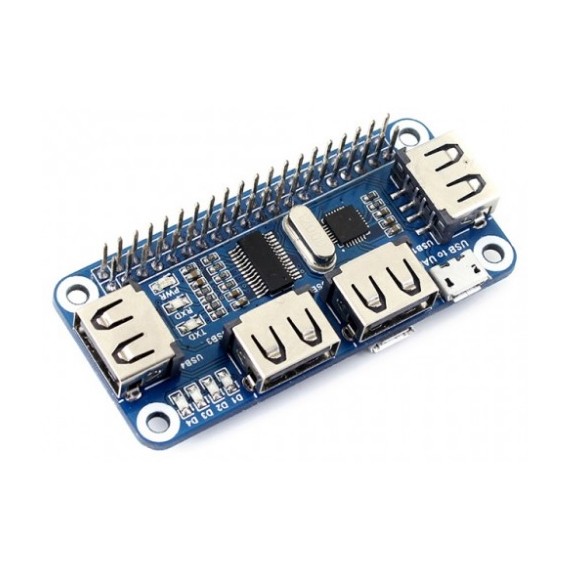

This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

USB HUB HAT x1
Micro USB connector x1
Micro USB cable x1
RPi screws pack (2pcs) x1

Raspberry Pi Expansion Board on board resource

Raspberry Pi GPIO interface: for connecting Raspberry Pi
USB to UART: for controlling the Raspberry Pi via serial terminal
USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
- Raspberry Pi Zero / Zero W: connected via Micro USB connector
- Raspberry Pi B+ / 2B / 3B: connected via Micro USB cable
USB extended ports: USB1~USB4
USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
Power indicator
USB to UART indicator
FE1.1S: USB HUB chip
12MHz crystal
CP2102: USB to UART converter

Operating voltage: 5V
4 USB Ports, compatible with USB2.0/1.1

Onboard USB to UART, convenient for Raspberry Pi serial debugging
Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port
