Waveshare Serial Bus Servo Driver Board

από WAVESHARE
Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable For ST/SC Series Serial Bus Servos, Small In Size, Easy To Integrate
31-00025514
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: Bus Servo Adapter (A)
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.20
Χωρίς ΦΠΑ 5.00
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 4.96

ΠΕΡΙΓΡΑΦΗ

Serial Bus Servo Drive Board

Designed For Serial Bus Servo, Integrates Servo Power Supply And Control Circuit

  • Supports connecting to a host or MCU to control the serial bus servos
  • Allows controlling up to 253 ST/SC series serial bus servos at the same time (sufficient power supply required)
  • 9~12.6V voltage input (the input voltage and the servo voltage must be matched)
  • Provides convenient serial bus servo control solutions
  • Integrates control circuit to ensure the stable operation of serial bus servo
  • Compact size and space saving, suitable for integration into sorts of space-limited projects

UART Serial Bus Control

Allows Controlling Up To 253 SC/ST Series Serial Bus Servos At The Same Time, Supports Receiving The Operating Status And Various Information Feedback Of Each Servo

Note: though one channel UART can control up to 253 bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.

Two Power Supply Methods

Onboard DC5521 Power Jack And Screw Terminal For Easy Integration Into Existing Project

Supports UART And USB Control

Switching The Control Mode By Selecting A Or B Via The Jumper

Easy To Use With USB Control

Connect The Driver Board To The Host Via A USB Cable To Easily Control The Serial Bus Servo And Receive Data Feedback, Speeding Up The Project Prototyping Process

Suitable For More Applications Via UART

Supports Directly Controlling The Serial Bus Servo Via UART Communication, And Provides SDK Which Is Compatible With Various Hardware Platforms, Please Refer To The Product's Wiki For More Details

Comes With Development Resources And Manual

Application Examples

Servos will provide various feedback like position, speed, torque lock, and operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control
Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos
Compact size, suitable for integration into sorts of space-limited projects

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
Bus Servo Adapter (A)
Μικτό Βάρος:
0.023kg
Τύπος Οδηγού:
  • Servo

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power Supply: DC 9~12.6V (ST series servo)
  • Power Supply Connector: 5.5 × 2.1mm DC
  • Communication Interface: UART
  • Dimensions: 42.00 × 33.00mm
  • Mounting Hole Size: 2.50mm
  • Mounting Hole Spacing: 37.00 × 28.00mm
  • Weight: 0.016 kg

In the Box

Bus Servo Adapter (A) x1

Compatible Servos

Supports ST/SC Series Bus Servos, And Can Directly Power The Servos Via DC Power Jack, Supports Selecting Power Supply Input According To The Servo Used

  • ST3215-HS Servo Motor
  • ST3215 Servo
  • ST3025 Servo
  • ST3020 Servo
  • SC09 Servo
  • SC15 Servo

Note: It is NOT recommended to use ST series and SC series servos together. When using different models of the same series, pay attention to whether the power input can meet the requirements of all the servos at the same time.




ΔΥΝΑΤΟΤΗΤΕΣ

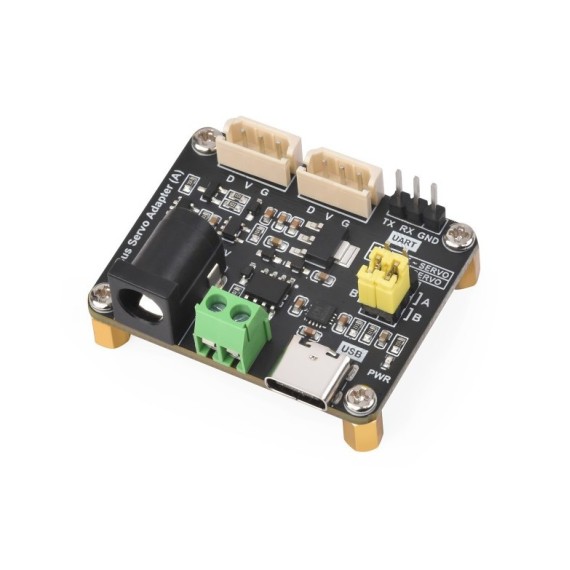

What's On Board

  1. 5.5*2.1 DC power jack
  2. Power supply screw terminal
  3. USB Type-C connector
  4. Control mode switch jumper
  5. Serial bus servo control interface
  6. UART communication interface

Dimensions
