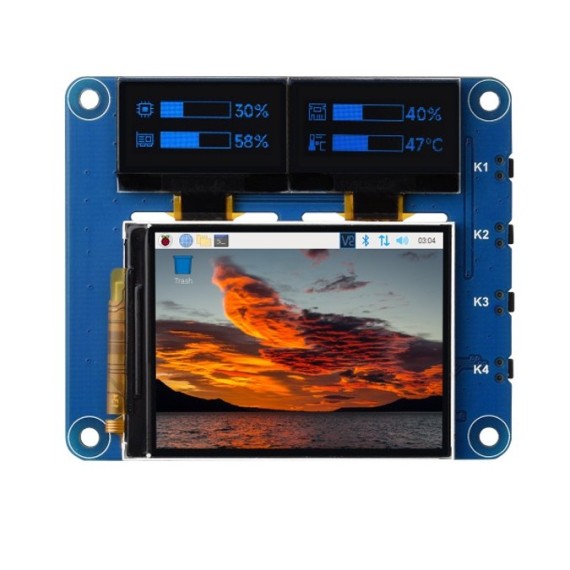

Waveshare Triple OLED/LCD HAT - 2" IPS LCD with Dual 0.96" Blue OLED

Κωδικός:

31-00025587

Part Number: OLED/LCD HAT (A)

ΚατασκευαστήςWAVESHARE Part NumberOLED/LCD HAT (A)

Διαθέσιμο

Αποστολή σε 24 ώρες

€19⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€17.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Raspberry Pi OLED/LCD HAT, Onboard 2inch IPS LCD Main Screen and Dual 0.96inch Blue OLED Secondary Screens

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
2inch IPS LCD Main Screen with built in ST7789VW driver chip, SPI interface communication, wide viewing angle, supports 262K color display, 240×320 resolution
Dual 0.96inch OLED secondary screens with built in SSD1315 driver chip, I2C interface communication, blue display color, 128×64 resolution, can be used to display key informations, status indicator messages or small graphics
Onboard 4x user-defined keys for extended applications
Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)

OLED/LCD HAT For Raspberry Pi

Comes with examples for Raspberry Pi, Vision Five2, Arduino, STM32, etc.
2inch LCD Main Screen With ST7789 Driver Chip, SPI Communication Dual 0.96inch OLED Secondary Screens With SSD1315 Driver Chip, 12C Communication

2inch LCD Main Screen

Using SPI Communication, Supports Clear And Vivid Color Image Display, Suitable For Various Application Scenarios

Dual 0.96inch OLED Secondary Screens

Using I2C communication, blue display color, Can be used to display key information,
status indicator messages or small graphics

Onboard 4x user-defined keys

Supports customizing the key function, easy to use

Application Scenarios

Multi-screen collaboration
Combining creativity with functionality, this Raspberry Pi OLED/LCD HAT will provide a completely new experience in multi-screen collaboration. The collaboration between the main screen, secondary screen 1, and secondary screen 2 allows you to easily display information, data, and images.
Flexible application
This multi-functional embedded display solution is suitable for Raspberry Pi projects, loT applications, embedded systems, and various DIY projects, provides more possibilities.
Easy to integrate
Onboard Raspberry Pi 40pin GPIO header, can be easily and quickly integrated into your project
