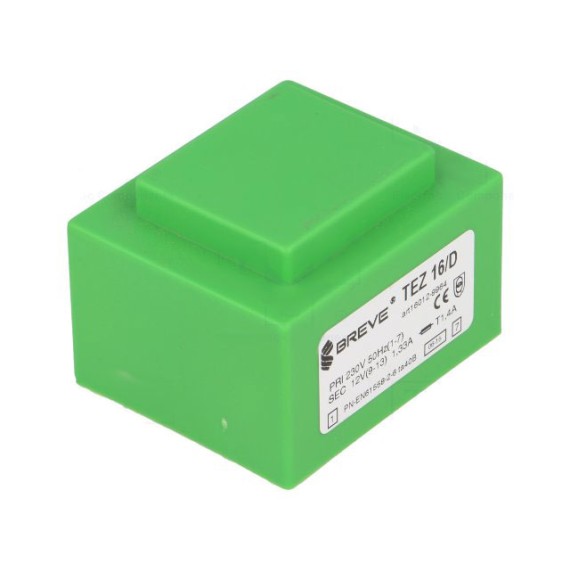

Transformer 230V/12V 16VA PCB Mount

by Breve
05-00016170
Company: Breve
Made in: China
In Stock
Ships in 24 Hours
Available in store
5.90
Without VAT 4.76
+
WISHLIST COMPARE

SPECIFICATIONS

Type of transformer:
Encapsulated
Power:
16VA
Number of outputs:
1
Secondary voltage 1:
12V
Secondary winding current 1:
1.33A
Mounting:
PCB

EXTRA SPECIFICATIONS

  • Transformer type encapsulated
  • Power 16VA
  • Primary voltage 230V AC
  • Secondary voltage 1 12V
  • Secondary winding current 2 1333.3mA
  • Mounting PCB
  • Pri./sec. insulation strength 4kV/60s
  • Sealing IP00
  • Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
  • Thermal class Ta40B
  • Secondary winding terminals 9-13
  • Primary winding terminals 1-7

Dimensions

  • A dimension 47mm
  • A1 dimension 30mm
  • A2 dimension 30mm
  • B dimension 57mm
  • C dimension 39mm
