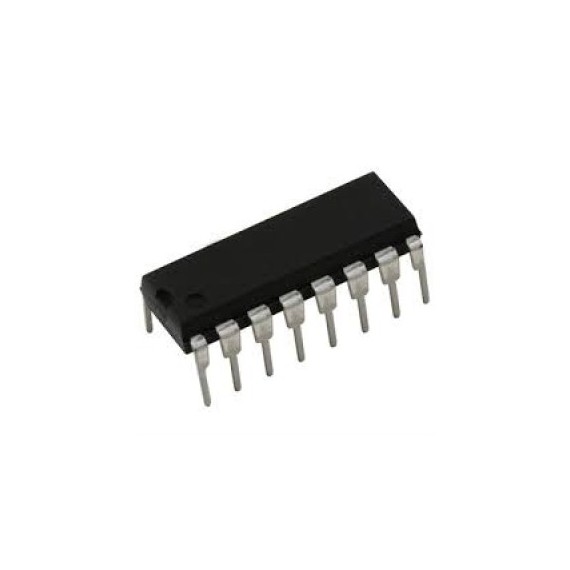

Binary Counter SN74HC4040N

The ’HC4040 devices are 12-stage asynchronous binary counters, with the outputs of all stages available externally. A high level at the clear (CLR) input...
05-00040400
Made in: USA
In Stock
Ships in 24 Hours
Available in store
0.80
Without VAT 0.65
+
WISHLIST COMPARE

DESCRIPTION

The ’HC4040 devices are 12-stage asynchronous binary counters, with the outputs of all stages available externally. A high level at the clear (CLR) input asynchronously clears the counter and resets all outputs low. The count is advanced on a high-to-low transition at the clock (CLK) input. Applications include time-delay circuits, counter controls, and frequency-dividing circuits.

SPECIFICATIONS

Case:
DIP16

EXTRA SPECIFICATIONS

  • Counter Type: Binary
  • Logic Family: HC
  • Number of Bits: 12 bit
  • Counting Sequence: Up
  • Operating Supply Voltage: 2 V to 6 V
  • Operating Temperature Range: - 40 C to + 85 C
  • Mounting Style: Through Hole
  • Package/Case: PDIP-16
  • Function: Counter
  • Output Current: +/- 5.2 mA
  • Maximum Operating Temperature: + 85 C
  • Minimum Operating Temperature: - 40 C
