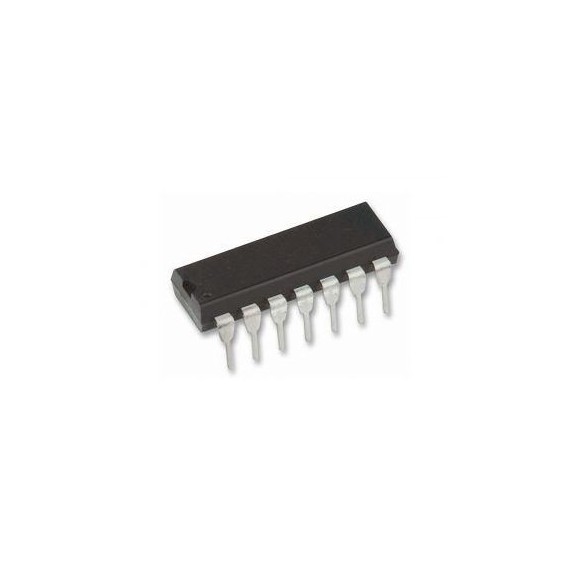

Dual D Flip-Flop - 74HC74N

The SNx4HC74 devices contain two independent D-type positive-edge-triggered flip-flops. A low level at the preset ( PRE ) or clear ( CLR ) inputs sets...
05-00074741
Gross Weight: 0kg
Made in: USA
In Stock
Ships in 24 Hours
Available in store
0.4000
Without VAT 0.32
+
WISHLIST COMPARE

DESCRIPTION

The SNx4HC74 devices contain two independent D-type positive-edge-triggered flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements are transferred to the outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of CLK. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.

SPECIFICATIONS

Case:
DIP14

SPECIFICATIONS

  • Product Category: Flip-Flops
  • Number of Circuits: 2
  • Logic Family: HC
  • Logic Type: D-Type Edge Triggered Flip-Flop
  • Polarity: Inverting/Non-Inverting
  • Input Type: CMOS
  • Output Type: CMOS
  • Propagation Delay Time: 175 ns
  • High Level Output Current: - 5.2 mA
  • Low Level Output Current: 5.2 mA
  • Supply Voltage - Max: 6 V
  • Minimum Operating Temperature: - 40 C
  • Maximum Operating Temperature: + 85 C
  • Mounting Style: Through Hole
  • Package/Case: PDIP-14
  • Packaging: Tube
  • Brand: Texas Instruments
  • Function: Dual with Clear Preset
  • Height: 4.57 mm
  • Length: 19.3 mm
  • Number of Channels: 2
  • Number of Input Lines: 4
  • Number of Output Lines: 2
  • Operating Supply Voltage: 6 V
  • Operating Temperature Range: - 40 C to + 85 C
  • Quiescent Current: 4 uA
  • Reset Type: Set, Reset
  • Series: SN74HC74
  • Supply Voltage - Min: 2 V
