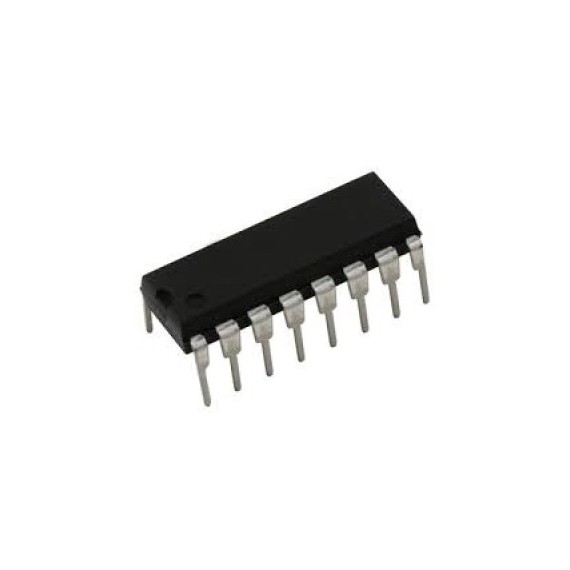

Decade Counter/Divider CD74HC4017E

The ’HC4017 is a high speed silicon gate CMOS 5-stage Johnson counter with 10 decoded outputs. Each of the decoded outputs is normally low and sequentially...
05-00040170
Gross Weight: 0kg
Made in: USA
In Stock
Ships in 24 Hours
Available in store
0.60
Without VAT 0.48
+
WISHLIST COMPARE

DESCRIPTION

The ’HC4017 is a high speed silicon gate CMOS 5-stage Johnson counter with 10 decoded outputs. Each of the decoded outputs is normally low and sequentially goes high on the low to high transition clock period of the 10 clock period cycle. The CARRY (TC) output transitions low to high after OUTPUT 10 goes from high to low, and can be used in conjunction with the CLOCK ENABLE (CE) to cascade several stages. The CLOCK ENABLE input disables counting when in the high state. A RESET (MR) input is also provided which when taken high sets all the decoded outputs, except “0”, low. The device can drive up to 10 low power Schottky equivalent loads.

SPECIFICATIONS

Case:
DIP16

SPECIFICATIONS

  • Counter Type: Decade
  • Logic Family: 74HC
  • Number of Bits: 10 bit
  • Counting Method: Asynchronous
  • Counting Sequence: Up
  • Operating Supply Voltage: 2 V to 6 V
  • Operating Temperature Range: - 55 C to + 125 C
  • Mounting Style: Through Hole
  • Package/Case: PDIP-16
  • Function: Counter
  • Output Current: +/- 5.2 mA
  • Brand: Texas Instruments
  • Maximum Operating Temperature: + 125 C
  • Minimum Operating Temperature: - 55 C
