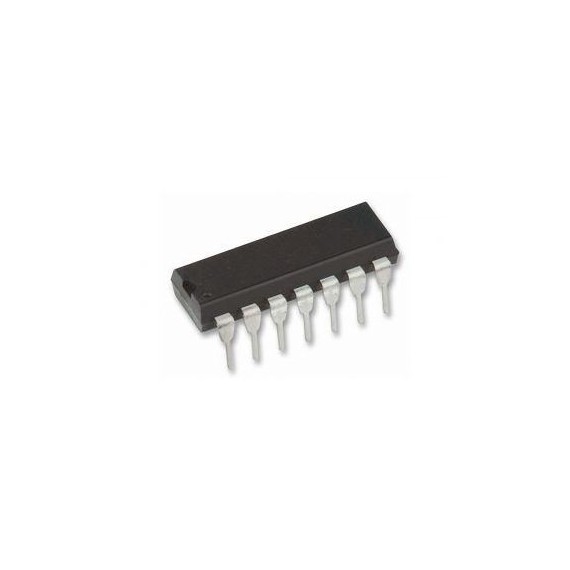

Hex Schmitt-Trigger Inverter - 74HC14N

The SN74HC14 are Schmitt-trigger devices that contain six independent inverters. They perform the Boolean function Y =  A   in positive logic.
05-00007414
Gross Weight: 0kg
Made in: USA
In Stock
Ships in 24 Hours
Available in store
0.60
Without VAT 0.48
+
WISHLIST COMPARE

DESCRIPTION

The SN74HC14 are Schmitt-trigger devices that contain six independent inverters. They perform the Boolean function Y = A in positive logic.

SPECIFICATIONS

Case:
DIP14

SPECIFICATIONS

  • Type of integrated circuit: Dogital
  • Kind of integrated circuit: Schmitt trigger
  • Number of channels: 6
  • Mounting: THT
  • Case: DIP14
  • Series: HC

FEATURES

  • Wide Operating Voltage Range of 2 V to 6 V
  • Outputs Can Drive Up to 10 LSTTL Loads
  • Low Power Consumption, 20-µA Max ICC
  • Typical tpd = 11 ns
  • ±4-mA Output Drive at 5 V
