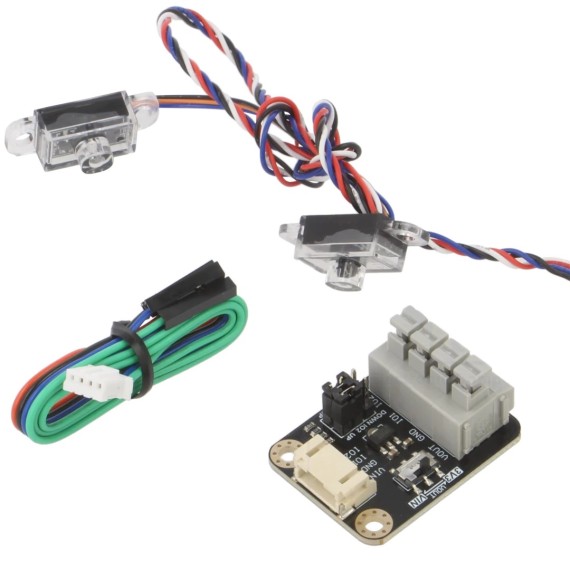

DFRobot UART Non-contact Optical Turbidity Sensor for Arduino

από DFROBOT
This non-contact turbidity sensor detects water quality by measuring the level of turbidity. Based on the optics principle, it is capable of detecting the...
25-00016138
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0554
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.80
Χωρίς ΦΠΑ 10.32
+

ΠΕΡΙΓΡΑΦΗ

This non-contact turbidity sensor detects water quality by measuring the level of turbidity. Based on the optics principle, it is capable of detecting the light transmittance and scattering rate of the liquid in transparent cylinder containers with a diameter of 40–50mm, which will then be output as an analog value within a certain range that reflects the level of liquid turbidity.

The turbidity sensor comes with two infrared probes, which should be oppositely installed on a container. And it detects when the liquid level inside is higher than the two probes. The sensor can measure without coming into contact with liquid, making it less susceptible to corrosion from water or chemicals.

Installation

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0554
Μικτό Βάρος:
0.02kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Θολότητας
Τυπική Τάση Εισόδου:
  • 5VDC
Ρεύμα Λειτουργίας:
10mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • UART

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Supply Voltage: 5V
  • Communication Mode: UART-TTL
  • Applicable Cylinder Container Diameter: 40 to 50mm
  • Baud Rate: 9600
  • Operating Current: less than 10mA
  • Response Time: less than 1s
  • Operating Temperature: 5 to 60℃
  • Storage Temperature: 0 to 65℃
  • Service Life: 50000h

ΔΥΝΑΤΟΤΗΤΕΣ

  • No mechanically moving parts, high reliability
  • Small size & low cost

Applications

  • Water quality monitoring system
