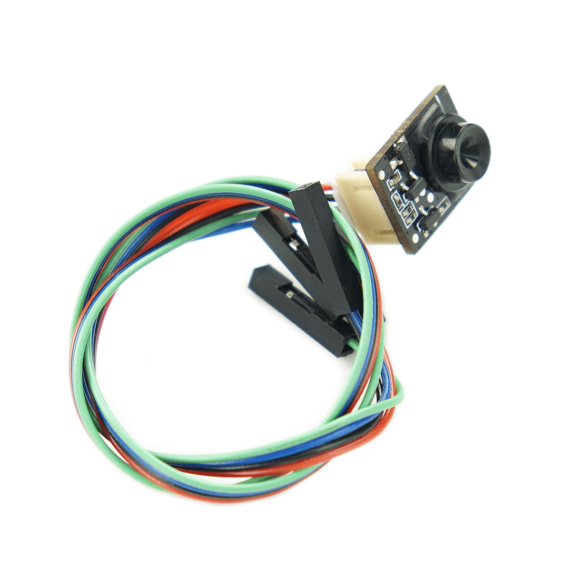

DFRobot Ultrasonic ToF Material Detection Sensor

από DFROBOT
This ultrasonic time-of-flight (ToF) sensor utilizes the difference in energy of the ultrasonic echo signal on various surfaces to identify materials....
25-00016708
Ογκομετρικό βάρος: 0.06kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0560
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
17.20
Χωρίς ΦΠΑ 13.87
+

ΠΕΡΙΓΡΑΦΗ

This ultrasonic time-of-flight (ToF) sensor utilizes the difference in energy of the ultrasonic echo signal on various surfaces to identify materials. Featuring ultra-low power, small size, and light weight, the ultrasonic material detection sensor is specially designed for material identification within a short range of 2-10cm.

The ultrasonic sensor can distinguish hard and soft materials and output information by IO (high/low) or UART. Compact and easy to install, it is mainly suitable for robotic cleaners to identify the floor material and automatically adjust the cleaning strategy according to the recognized ground information, thus achieving intelligent cleaning.

Material inspection

Parameter description of FOV

FOV 45° Scan Area

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0560
Μικτό Βάρος:
0.06kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Input Voltage: 3.3V
  • Start-up Current: 50mA
  • Operating Current: 8mA
  • Driving Frequency: 175KHz
  • Detection Range: 2 to 10cm
  • Detection Frequency: 100Hz
  • FOV: 45°
  • Operating Temperature:-10 to 50℃
  • Storage Temperature: -30 to 70℃
  • Lifetime: 3000h
  • EDS Protection Level: 15KV
  • Protection Level: IP54
  • Communication Mode: UART/IO
  • Weight: 1.0g (wires not included)

ΔΥΝΑΤΟΤΗΤΕΣ

  • Small size & light weight
  • Wide effective distance range for detecting material
  • Wide effective FOV for detecting material
  • High reliability
  • Ultrasonic principle
  • Miniature and ultra-low-power
  • Easy to embed
  • Application:
    • Intelligent Cleaning
