Τροφοδοτικό Ράγας 12V 7.1A 90W - HDN-10012

05-00016445
HDN-10012
ΚατασκευαστήςEspe Part NumberHDN-10012
Κατόπιν παραγγελίας
Διαθέσιμο σε 1-3 ημέρες
3730
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

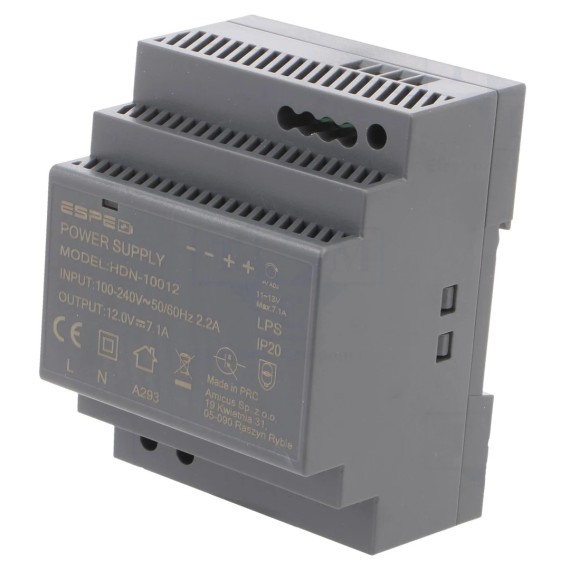

ESPE-HDN-10012 is a high quality, efficient switched-mode power supply in a plastic housing for mounting on a DIN TS35 mm rail with a width of 4U.

Its design is based on high-quality electronic components that allow for continuous, long-term operation. It is reliable, fully protected and stable. Provides high efficiency and excellent specification.

The perforated enclosure provides good ventilation, and the trimmer allows to accurately adjust the voltage to compensate for the voltage drop across the wires.

  • Type of power supply: Switched-mode
  • Weight: 243g
  • Operating temperature: 0...40°C
  • Protection:
    • Over current OCP
    • Short circuit protection SCP
  • Power supply/converter features: Rated parameters obtained at full load

Κατασκευαστής
Espe
Part Number
HDN-10012
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.001kg
Power
90 Watt
Output Voltage
12V DC
Output Current
7.1 Amp
Supply Voltage
  • 100...240V AC
Protection
  • over current ,
  • short-circuit
Number of Outputs
1
Mounting
DIN
Efficiency
89 %
Στεγανοποίηση
IP20
Διαστάσεις Τροφοδοτικού
90x58x70mm
Output connector
  • Screw Terminals
