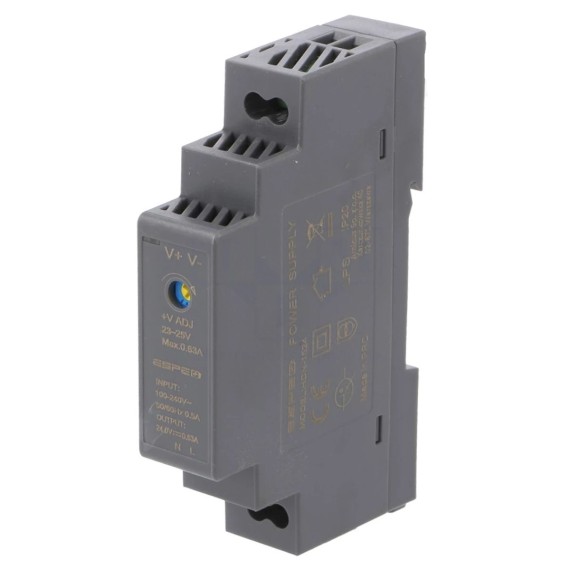

Τροφοδοτικό Ράγας 24V 0.63A 15W - HDN-1524

από ESPE
ESPE-HDN-1524 is a high quality, efficient switched-mode power supply in a plastic housing for mounting on a DIN TS35 mm rail with a width of 1U. Its...
05-00016440
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: ESPE
Part Number: ESPE-HDN1524
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
14.50
Χωρίς ΦΠΑ 11.69
+

ΠΕΡΙΓΡΑΦΗ

ESPE-HDN-1524 is a high quality, efficient switched-mode power supply in a plastic housing for mounting on a DIN TS35 mm rail with a width of 1U.

Its design is based on high-quality electronic components that allow for continuous, long-term operation. It is reliable, fully protected and stable. Provides high efficiency and excellent specification.

The perforated enclosure provides good ventilation, and the trimmer allows to accurately adjust the voltage to compensate for the voltage drop across the wires.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
ESPE
Part Number:
ESPE-HDN1524
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Power:
15Watt
Output Voltage:
24V DC
Output Current:
0.63Amp
Supply Voltage:
  • 100...240V AC
Protection:
  • over current
  • short-circuit
Number of Outputs:
1
Mounting:
DIN
Efficiency:
85%
Στεγανοποίηση:
IP20
Διαστάσεις Τροφοδοτικού:
90x58x18mm
Output connector:
  • Screw Terminals

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Type of power supply: Switched-mode
  • Weight: 70g
  • Operating temperature: 0...40°C
  • Protection:
    • Over current OCP
    • Short circuit protection SCP
  • Power supply/converter features: Rated parameters obtained at full load
