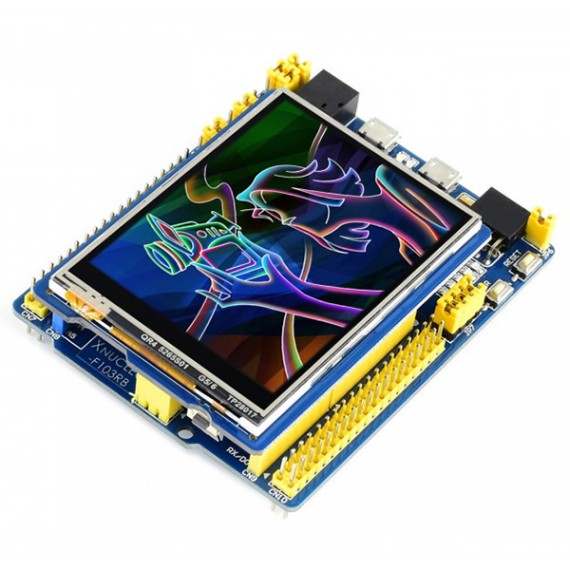

Display 2.8" Touch LCD Shield for Arduino

από WAVESHARE
This 2.8inch Touch LCD display made for Arduino. With standard Arduino interface is compatible with development boards like: Arduino UNO...
31-00010684
Ογκομετρικό βάρος: 0.05kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 10684
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
29.90
Χωρίς ΦΠΑ 24.11
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 26.91

ΠΕΡΙΓΡΑΦΗ

This 2.8inch Touch LCD display made for Arduino.

With standard Arduino interface is compatible with development boards like:

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
10684
Μικτό Βάρος:
0.052kg
Χώρα Προέλευσης:
Κίνα
Τύπος:
LCD/TFT
Μέγεθος Οθόνης:
2.8"
Ανάλυση:
320x240
Αναλογία Οθόνης:
  • 4:3
Χρώματα Οθόνης:
Colorful
Οθόνη Aφής:
Resistive
Διασύνδεση:
  • SPI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • LCD Type: TFT
  • LCD Interface: SPI
  • LCD Controller: HX8347D
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • Colors: RGB, 65K colors
  • Resolution: 320x240 (Pixel)
  • I/O Voltage: 3.3 - 5V

ΔΥΝΑΤΟΤΗΤΕΣ

  • Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution
  • Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  • Micro SD slot, provides an easy way to store photos for displaying
  • Controlled via SPI, only a few Arduino pins are used
  • Backlight adjustable by program, lower power consumption
