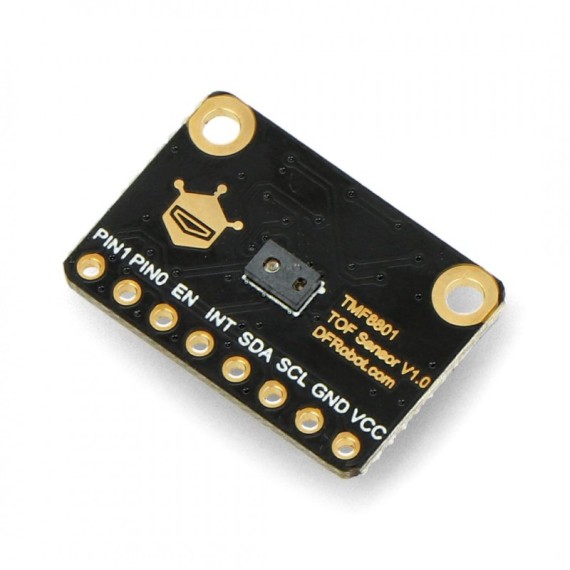

Fermion TMF8801 ToF Distance Ranging Sensor (20-2500mm)

Κωδικός:

25-00016346

Part Number: SEN0430

ΚατασκευαστήςDFRobot Part NumberSEN0430

Διαθέσιμο

Αποστολή σε 24 ώρες

€16²⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

The TMF8801 is a time-of-flight (ToF) distance ranging sensor that uses the time difference between light pulses to measure distance. It provides single zone detection of an object irrespective of the color, reflectivity and texture of the object.

The TMF8801 offers high dynamic range and detection sensing measurements from 2-250cm distances. The device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight.

A built-in histogram is featured to delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters.

The TMF8801 outputs data through a I2C fast-mode communications interface and an integrated micro controller, which is featured with all algorithms included on-chip with no need for external optics.

Connection Diagram

Operating Voltage: 2.7~3.3V
Operating Current: ＜1.5mA
Proximity Detection Range: 20-100mm
Distance Sensing Range: 100-2500mm
Operating Temperature: -30~60℃
Communication Interface: Breakout 2.54mm-8Pin I2C
Dimension: 21x14.5mm
Mounting Hole Size: 2.0mm
Mounting Hole Pitch: 17mm

21º FOI, detect the object closest to the center
20–2500mm distance sensing
Enables dark and sunlight environment distance measurement within ±5%
A built-in histogram for compensating for dirt and smudges on cover glass
940nm VCSEL Class 1 Eye Safety
Low power consumption:
- 940μA power consumption at 10Hz(proximity mode)
- 26mA power consumption at 60Hz (distance and proximity mode)
- 0.26μA power-down current consumption (EN=0)
