Gravity Αναλογικός Αισθητήρας Θολότητας για Arduino

από DFROBOT
The arduino turbidity sensor detects water quality by measuring level of  turbidity . It is able to detect suspended particles in water by measuring the...
25-00000189
Ογκομετρικό βάρος: 0.03kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0189
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
13.60
Χωρίς ΦΠΑ 10.97
+

ΠΕΡΙΓΡΑΦΗ

The arduino turbidity sensor detects water quality by measuring level of turbidity. It is able to detect suspended particles in water by measuring the light transmittance and scattering rate which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases. You may also check Liquid Sensor Selection Guide to get better familar with our liquid sensor series.

This arduino turbidity sensor have both analog and digital signal output modes. You can select the mode according to the MCU as threshold is adjustable in digital signal mode.

Turbidity sensors can be used in measurement of water quality in rivers and streams, wastewater and effluent measurements, sediment transport research and laboratory measurements.

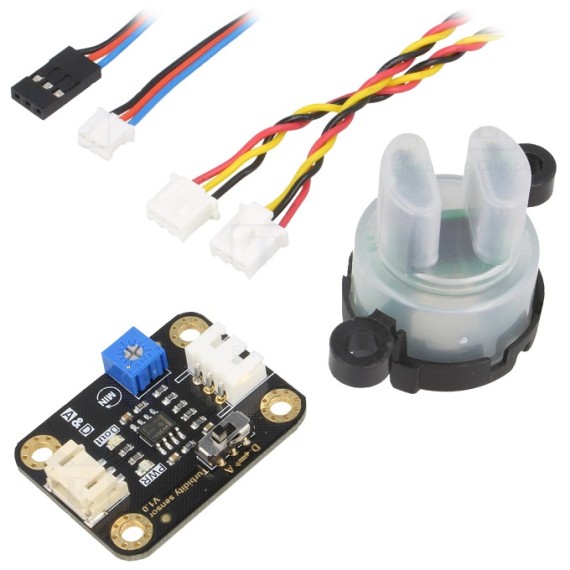

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1xTurbidity sensor adapter
  • 1x Turbidity sensor probe
  • 1x Turbidity sensor cable
  • 1x Gravity analog sensor cable



ΣΗΜΕΙΩΣΕΙΣ

  • Please note that the top of probe is not waterproof!

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0189
Μικτό Βάρος:
0.027kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Θολότητας
Τυπική Τάση Εισόδου:
  • 5VDC
Ρεύμα Λειτουργίας:
40mA
Διασύνδεση:
  • Αναλογική
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 5V DC
  • Operating Current: 40mA (MAX)
  • Response Time: <500ms
  • Insulation Resistance: 100M (Min)
  • Output Method:Analog
  • Analog output: 0-4.5V
  • Digital Output: High/Low level signal (you can adjust the threshold value by adjusting the potentiometer)
  • Operating Temperature: 5℃~90 ℃
  • Storage Temperature: -10℃~90℃
  • Dimensions: 38x28x10mm
  • Weight: 30g

ΒΙΝΤΕΟ

We've Got A New Toy! - Analog Turbidity Sensor (SEN0189)

The turbidity sensor is able to detect suspended particles in water by measuring the light transmittance and scattering rate which changes with the amount of total suspended solids in water. As the TTS increases, the liquid turbidity level increases. This sensor has both analog and digital signal output modes. You can select the mode according to the MCU as the threshold is adjustable in digital signal mode.
