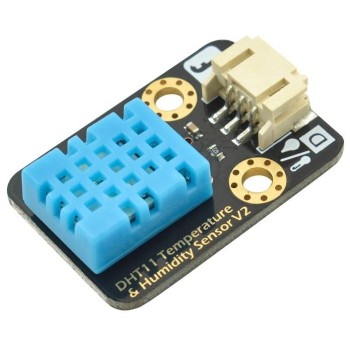

Gravity DHT11 Temperature & Humidity Sensor

από DFROBOT
DFRobot's latest generation of digital DHT11 Temperature and Humidity sensor is as powerful as it used to be but easier to use.  This  DHT11  Arduino...
25-00016172
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0067
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.90
Χωρίς ΦΠΑ 7.98
+

ΠΕΡΙΓΡΑΦΗ

DFRobot's latest generation of digital DHT11 Temperature and Humidity sensor is as powerful as it used to be but easier to use.  This  DHT11 Arduino temperature and humidity sensor has a full range temperature compensation, low power consumption, long term stability and calibrated digital signal. A high-performance 8-bit microcontroller is integrated in the sensor with calibration-coefficient saved in OTP memory to provide accurate temperature readings.

To ease the difficulty, a Gravity Interface is adapted to allow plug&play.  The Arduino IO expansion shield is the best match to connect with your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule and curie.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0067
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Θερμοκρασίας
  • Υγρασίας
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Διασύνδεση:
  • Ψηφιακή

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Wider voltage range: 3.3V to 5V
  • Temperature range :0-50 °C error of ± 2 °C
  • Humidity :20-90% RH ± 5% RH error
  • Interface: Digital

ΔΥΝΑΤΟΤΗΤΕΣ

  • Standard assembling struct ( two 3mm holes with multiple of 5cm as interval ).
  • User-friendly interfaces ( "A" for analog and "D" for digital ).
  • Icons to simplely illustrate sensor function.
  • High quality connector.
  • Immersion gold surface.
