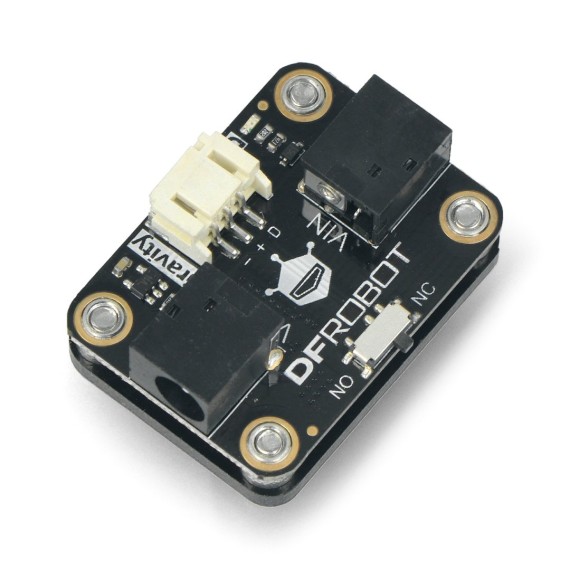

Gravity Easy Relay Module

Κωδικός:

25-00016155

Part Number: DFR0643

ΚατασκευαστήςDFRobot Part NumberDFR0643

Διαθέσιμο

Αποστολή σε 24 ώρες

€9⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

The traditional relay module has complicated wiring and is not friendly to beginners or students. The simple switch module simplifies the wiring method for connecting traditional relays. The input end is equipped with an adapter, which can be compatible with most power sources, battery boxes, DC power supplies, power bank, etc. While simplifying the wiring mode, the functions of relays NC and NO are retained, and the normally open and normally closed modes can be switched by simply adjusting the toggle switch.

DFRobot's latest easy relay module uses a standard Gravity sensor interface and supports a wide voltage input of 3.3V-5.5V, making it easy to connect with main control boards such as Arduino, control board, and so on. Meet your needs in control applications such as robot control, light control, smart home, security, etc.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

1x Gravity: Simple Relay Module
1x Gravity digital sensor cable
2x DC2.1 power adapter male
2x DC2.1 male to male
1x DC2.1 female to USB male
1x DC2.1 female to USB female
1x Black acrylic base
4x Round head screw M3 x8

VIN operating voltage: 5V-30V
VIN operating current: 0A-2.5A
Logic power supply: 3.3 ~ 5.5V
Logic signal: 3.3 ~ 5.5V
Operating temperature: -55 ℃ -150 ℃
Switching characteristics: T (on) = 20us / T (off) = 50us
Switching frequency: 1kHz
Dimension: 37x27mm

3.3 ~ 5.0V working voltage, wide voltage input, compatible with 3.3V control board, and 5V main control board.
Toggle switch to switch NC / NO mode easily, LED indicator shows output status.
