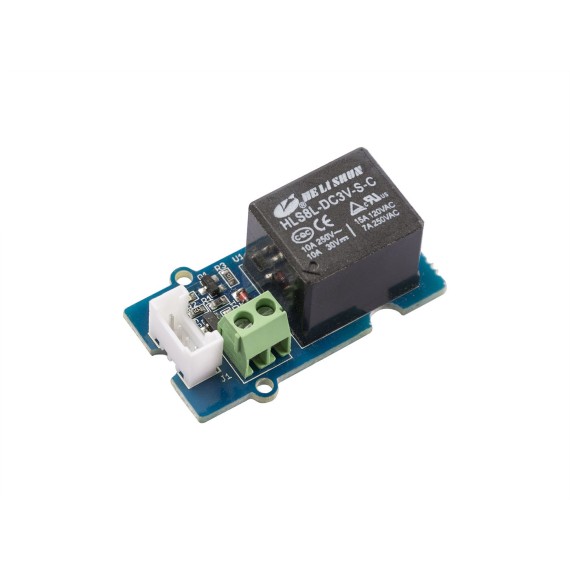

Seeed Grove Relay

από Seeed Studio
The Grove-Relay module is a digital normally-open switch that can handle the current up to 5A at 250VAC for long periods of time.
32-00018301
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Seeed Studio
Part Number: 103020005
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
3.60
Χωρίς ΦΠΑ 2.90
+

ΠΕΡΙΓΡΑΦΗ

The Grove-Relay module is a digital normally-open switch that can handle the current up to 5A at 250VAC for long periods of time. When the relay is switched on, the LED will light up and the relay will allow current to flow. The peak voltage capability is 250V at 10A. It is widely used in remote control, telemetry, communication, automatic control, mechatronics, power electronics and other fields.

The Relay is a digital normally open switch that controls a relay capable of switching much higher voltages and currents than your normal Arduino boards.

With the help of the Grove System, engineers and makers can easily avoid jumper-wires problems. Seeed Studio has developed more than 300 Grove modules covering a wide range of applications that can fulfill a variety of needs.

Please exercise great care when working with mains voltages - if in doubt contact a professional such as a licensed electrician for help.

Features

  • Digital-Switch: It has the advantages of accurate measurement, simple setting, multiple protection functions and fast speed.
  • Maximum load of a normally open interface: AC 5v@250V, DC 5v@30V.
  • Easy to connect: The easy connection is just with jumper wires, no soldering tools are required.
  • Change the level state: High-level or low-level trigger can be set by wire jumper.
  • Friendly LED reminders: When the relay works, the power prompt light will light up.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Seeed Studio
Part Number:
103020005
Μικτό Βάρος:
0.001kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Specification

Operate voltage

3.3V-5V

Input current

100mA

Rated load

5A@250VAC 5A@30VDC

Contact resistance

50mΩ @6VDC 1A

Insulation resistance

100MΩ 10ms Max.

Operate time

10ms Max.

Release time

5ms Max.

Input interface

Digital

Dimensions

42mm x24mm x18.5mm

Weight

G.W 19g

Battery

Exclude

Applications

  • Automatic control
  • Remote control
  • Electromechanical integration
  • Home appliance control
  • Electrical equipment

In the Box

Grove - Relay

1

Wire Jumper

1

User Guide

1
