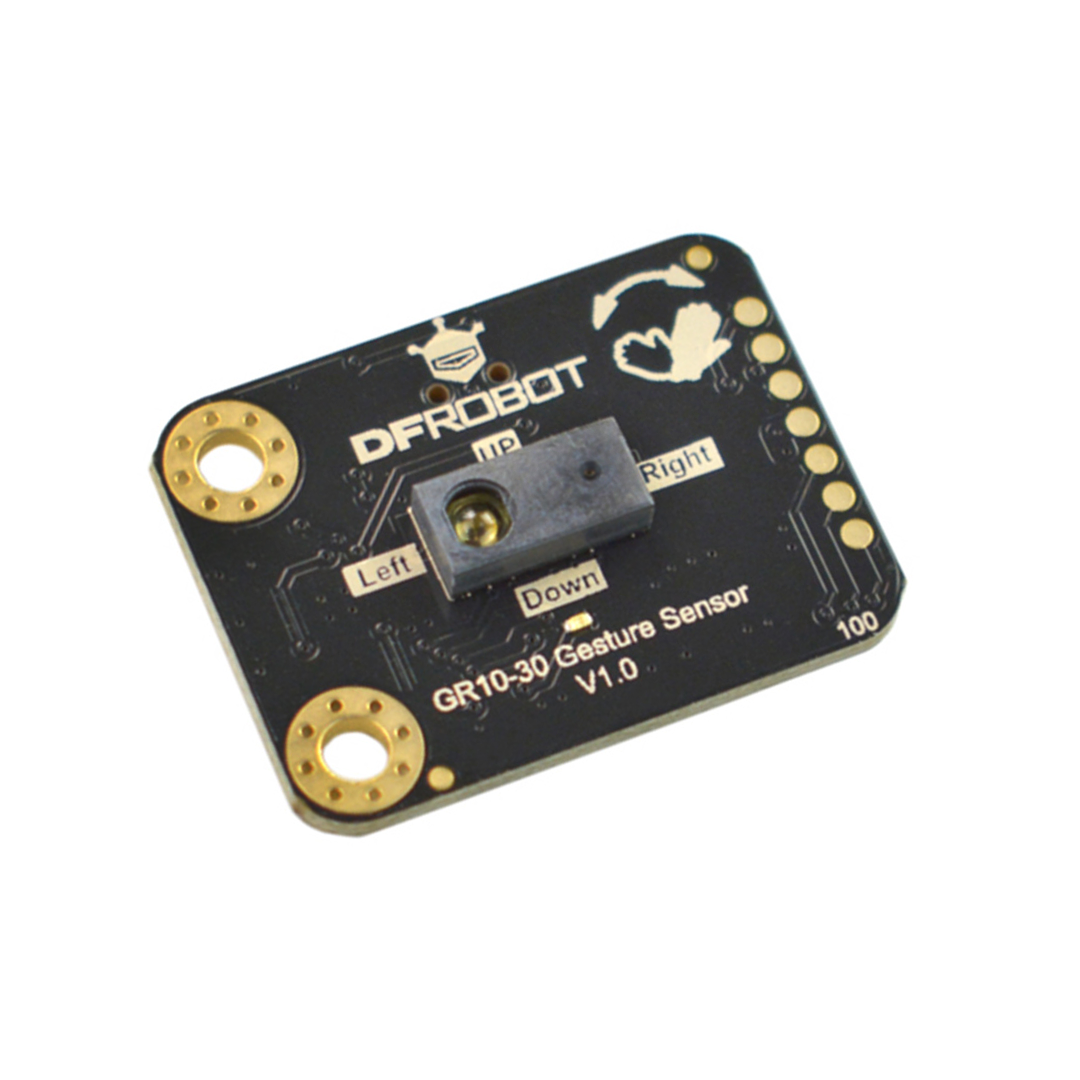

Gravity GR10-30 Gesture Sensor - 0-30cm

από DFROBOT
This GR10-30 gesture sensor is capable of recognizing   12 hand gestures : move up, down, left, right, forward, backward, rotate clockwise and...
25-00016348
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0561
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
29.90
Χωρίς ΦΠΑ 24.11
+

ΠΕΡΙΓΡΑΦΗ

This GR10-30 gesture sensor is capable of recognizing 12 hand gestures: move up, down, left, right, forward, backward, rotate clockwise and counterclockwise, rotate clockwise and counterclockwise continuously, hover, and wave. And users can set parameters such as the gesture trigger distance, the hand rotation angle, the hovering time that can be recognized, and the size of the recognition window to get more accurate results.

The GR10-30 features stable performance and high accuracy within a sensing distance of up to 30 cm. Meanwhile, it provides two interrupt pins for indicating if a gesture trigger occurs and if an object enters the recognition range.

The sensor is well suited to non-contact operation applications like gesture remote controllers, robot interaction, human-machine interface control, lighting control, and gesture game machine.



Wiring Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0561
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Χειρονομίας
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
10mA
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Supply Voltage: 3.3V to 5V
  • Operating Current: <10mA
  • I2C Address: 0x73
  • Serial Baud Rate: 9600
  • Maximum Recognition Distance: 30cm
  • Operating Temperature:0℃ to 70℃
  • Operating Humidity:5%RH to 85%RH
  • Dimension:22x30mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Maximum recognition distance of 30cm
  • Capable of recognizing 12 gestures
  • Configurable recognition threshold & other parameters
  • Support UART & I2C communication

Applications

  • Gesture Remote Controller
  • Robot Interaction
  • Human-machine Interface Control
