Gravity I2C Voice Recorder Module EDU

25-00016271
DFR0699
ΚατασκευαστήςDFRobot Part NumberDFR0699
Διαθέσιμο
Αποστολή σε 24 ώρες
€1240
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

Gravity: I2C Voice Recorder Module EDU is DFRobot all-in-one voice interaction module, which integrates recording and playback functions into one.

It can record with one button, and also supports Gravity: I2C interface for recording and playback by microcontroller. And support number synthesis reading function, simple programming can be directly broadcast temperature, humidity, voltage, time and other data, support headphones or speaker output, built-in amplifier plug and play.

Help you easily add voice prompts or sound interaction for your projects.

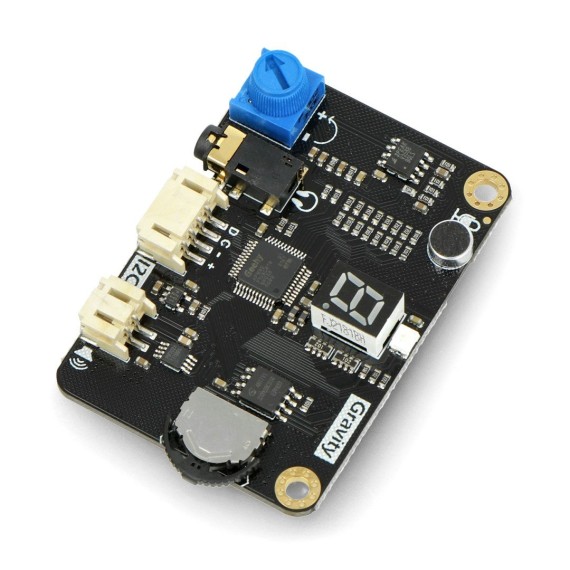

Board Overview

  • Operating Voltage: 3.3~5V
  • Communication Interface: Gravity I2C
  • I2C Address: 0x30~0x39 (Adjustable)
  • Recording Function: Can store up to 10 segments of 100s audio
  • Speech Synthesis: -999999999.999999999 to 999999999.999999999 (Number Synthesis Reading Function)
  • Audio Output 1: 3.5mm Headphone Port
  • Audio Output 2: PH2.0 Speaker Port
  • Dimension: 57x40mm

  • Record with one button
  • Supports Gravity I2C interface
  • Support number synthesis reading function
  • Support headphones or speaker output
  • Built-in amplifier plug and play

Applications

  • Add voice prompts
  • Add sound interaction
Κατασκευαστής
DFRobot
Part Number
DFR0699
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.024kg
Τύπος Αισθητήρα
  • Ήχου
  • Φωνής
Τυπική Τάση Εισόδου
  • 3.3VDC
  • 5VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
