Gravity Photoelectric Water/Liquid Level Sensor

25-00016130
SEN0205
CompanyDFRobot Part NumberSEN0205
In Stock
Ships in 24 Hours
890
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

This is a photoelectric water liquid level sensor that is operates using optical principles. The advantages of this photoelectric water liquid level sensor are good sensitivity and no need for mechanical parts - meaning less calibration! The corrosion resistant probe is easily mounted and can handle high temperature and high pressure. The arduino liquid sensor is equipped with an interface adapter for compatibility with the DFRobot "Gravity" interface.

To ease the difficulty of using this arduino liquid sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to Arduino. As this liquid sensor is able to work at 3.3V which makes it compatible with Raspberry Pi, intel edison, joule and curie.

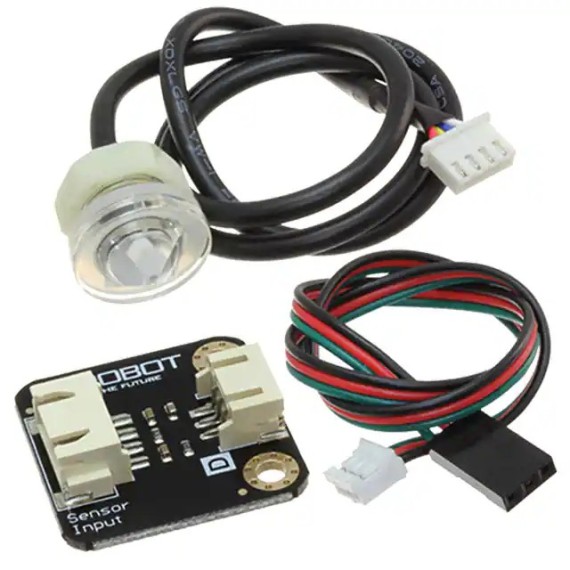

THE PACKAGE INCLUDES

  • 1x Liquid Level Sensor-FS-IR02 probe
  • 1x Liquid Level Sensor convert board
  • 1x PH2.0-3P Cable

NOTES

  • Avoid placing the sensor near bright lights or in direct sunlight as these can cause interference.

Connection Diagram

  • Model: FS-IR02
  • Type: Photoelectric liquid level sensor
  • Operating voltage: 5 VDC
  • Output current: 12 mA
  • Working temperature: - 25 ~ 105 ℃
  • Low level output: < 0.1 V
  • High level output: > 4.6 V
  • Liquid level detection accuracy: ±0.5 mm
  • Material: PC
  • Measuring range: No limit
  • Life: 50,000 hours
  • Dimension: 28x28mm
  • Cable Length: 450mm
  • Weight: 26g

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
DFRobot
G. Weight
0.026kg
Sensor Type
  • Liquid Level
Typical Input Voltage
  • 5VDC
Interface
  • Analog
Communication Protocol
  • Without
