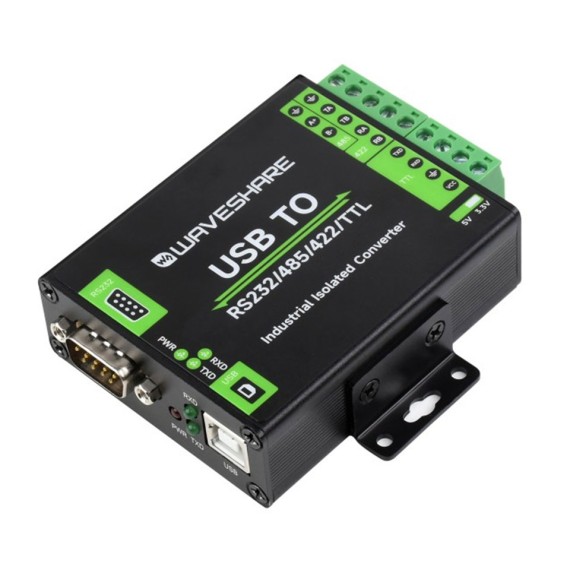

Industrial Isolated Converter - FT232RNL USB TO RS232/485/422/TTL

Industrial USB to RS232/RS485/RS422/TTL Converter

Κωδικός:

31-00023996

Part Number: USB TO RS232/485/422/TTL

ΚατασκευαστήςWaveshare Part NumberUSB TO RS232/485/422/TTL

Διαθέσιμο

Αποστολή σε 24 ώρες

€29⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€26.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά
Βίντεο

Features At A Glance

Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility
Supports multiple communication interface conversion: USB to RS232, USB to RS485, USB to RS422, USB to TTL
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering with each other
Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
3 LEDs for indicating the power and transceiver status
High quality USB-B and RS232 connectors, smoothly plug/pull
Industrial grade metal case, supports wall-mount and rail-mount installations, solid and beautiful, easy to install

Specifications

PRODUCT TYPE	Industrial grade digital isolated converter
USB	Operating voltage	5V
	Connector	USB-B
	Protection	200mA self-recovery fuse, isolated output
RS232	Connector	DB9 male
	Protection	TVS diode, surge protection & ESD protection
	Transmission mode	Point-to-point
	Baud rate	300bps ~ 921600bps
RS485/422	Connector	Screw terminal
	Direction control	Hardware automatic control
	Protection	600W lightningproof and surge-suppress, 15KV ESD protection (reserved two 120R balancing resistors, enabled/disabled via jumper)
	Transmission mode	Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
	Baud rate	300bps ~ 2Mbps
TTL (UART)	Operating voltage	3.3V / 5V
	Connector	Screw terminal
	Pins	TXD, RXD, GND, 5V/3.3V
	Protection	clamp protection diode, over-voltage/negative-voltage proof, shock proof
	Transmission mode	Point-to-point
	Baud rate	300bps ~ 2Mbps
Indicators	PWR	Red power indicator, light up when there is USB connection and voltage is detected
	TXD	TX indicator, light up when the USB port sends data
	RXD	RX indicator, light up when the device ports send data back
Operating environment	Temperature	-40℃ ~ 85℃
Operating environment	Humidity	5%RH ~ 95%RH
Operating system	Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Waveshare Industrial USB to serial port converters - Comparison table

Model	GRobotronics SKU	Description	Serial port converter	Isolation
Industrial USB to RS232/RS485/TTL Converter	31-00015817SKU copied!	USB to single-channel serial port Adopts FT232RL solution Wall-mount and desktop support	USB to RS232 USB to RS485 USB to TTL	Yes
Industrial USB to RS232/RS485/RS422/TTL Converter	31-00023996SKU copied!	USB to single-channel serial port Adopts FT232RNL solution Wall-mount and rail-mount support	USB to RS232 USB to RS485 USB to RS422 USB to TTL	Yes
Industrial USB to 2-Ch UART/I2C/SPI/JTAG Converter	31-00025411SKU copied!	USB to 2-ch serial port Adopts CH347T solution Wall-mount and desktop support	USB to 2-ch TTL USB to 1-ch TTL & 1-ch I2C & 1-ch SPI USB to 1-ch TTL & 1-ch JTAG	No
Industrial USB to 4-Ch RS485 Converter	31-00025219SKU copied!	USB to 4-ch serial port Adopts CH344 solution Wall-mount and desktop support	USB to 4-ch RS485	No
Industrial USB to 4-Ch RS485 Converter (B)	31-00026545SKU copied!	USB to 4-ch serial port Adopts CH344 solution Wall-mount and desktop support	USB to 4-ch RS485	Yes
Industrial USB to 4-Ch RS232/RS485 Converter	31-00026681SKU copied!	USB to 4-ch serial port Adopts FT4232HL solution Wall-mount and rail-mount support	USB to 4-ch RS232 USB to 3-ch RS232 & 1-ch RS485 USB to 2-ch RS232 & 2-ch RS485	Yes
Industrial USB to 4-Ch RS232/RS485/RS422/TTL Converter	31-00025790SKU copied!	USB to 4-ch serial port Adopts FT4232HL solution Wall-mount and desktop support	USB to 1-ch TTL & 3-ch RS485 USB to 1-ch TTL & 2-ch RS485 & 1-ch RS232 USB to 1-ch TTL & 2-ch RS485 & 1-ch RS422 USB to 1-ch TTL & 1-ch RS485 & 1-ch RS232 & 1-ch RS422 USB to 2-ch TTL & 2-ch RS485 USB to 2-ch TTL & 1-ch RS485 & 1-ch RS422 USB to 2-ch TTL & 1-ch RS422 & 1-ch RS232	Yes
Industrial USB to 8-Ch TTL Converter	31-00027076SKU copied!	USB to 8-ch serial port Adopts CH348L solution Wall-mount and desktop support	USB to 8-ch TTL	No
Industrial USB to 8-Ch RS485 Converter	31-00028214SKU copied!	USB to 8-ch serial port Wall-mount and rail-mount support	USB to 8-ch RS485	Yes
