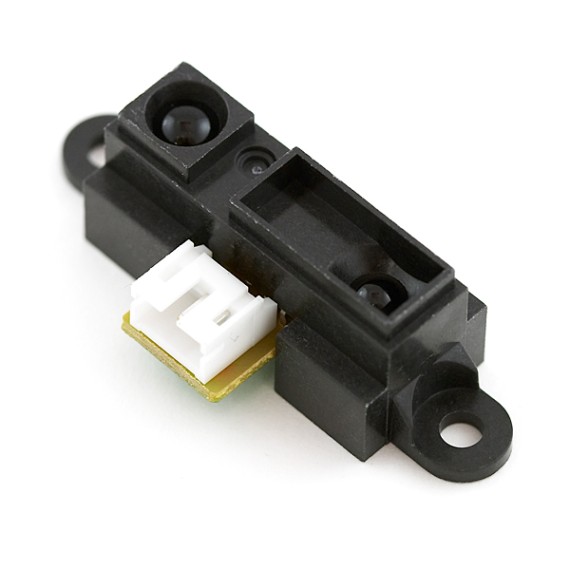

Infrared Proximity Sensor Short Range - Sharp GP2Y0A41SK0F

by Sharp
Infrared proximity sensor made by Sharp. Part # GP2Y0A41SK0F
19-00012728
Gross Weight: 0kg
Company: Sharp
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
Available in store
11.90
Without VAT 9.60
+
WISHLIST COMPARE

DESCRIPTION

Infrared proximity sensor made by Sharp. Part # GP2Y0A41SK0F has an analog output that varies from 3.1V at 4cm to 0.3V at 30cm with a supply voltage between 4.5 and 5.5VDC. The sensor has a Japanese Solderless Terminal (JST) Connector. We recommend purchasing the related pigtail below or soldering wires directly to the back of the module.

SPECIFICATIONS

Sensor Type:
  • Proximity
Typical Input Voltage:
  • 4.5VDC
  • 5.5VDC
Oparating Current:
12mA
Interface:
  • Analog
Communication Protocol:
  • Without

SPECIFICATIONS

  • Measuring distance range Min 4 to Max 30 cm
  • Designed to use in variety of Applications areas (Computer, OA 4equipment, Telecommunication Equipment (Terminal), Measuring equipment, Tooling machines, Home appliance etc.)
  • Operating supply voltage 4.5 to 5.5 V
  • Operating temperature -10 to +60 C
