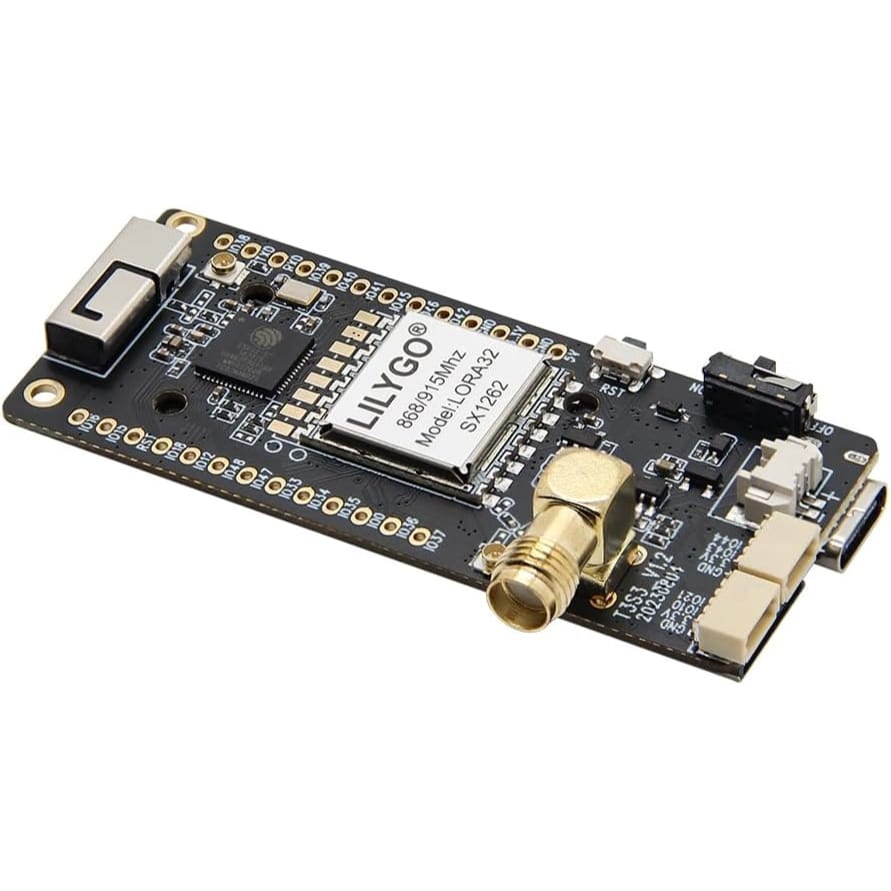

LILYGO T3-S3 Meshtastic Version – LoRa SX1262 868MHz, 2 image

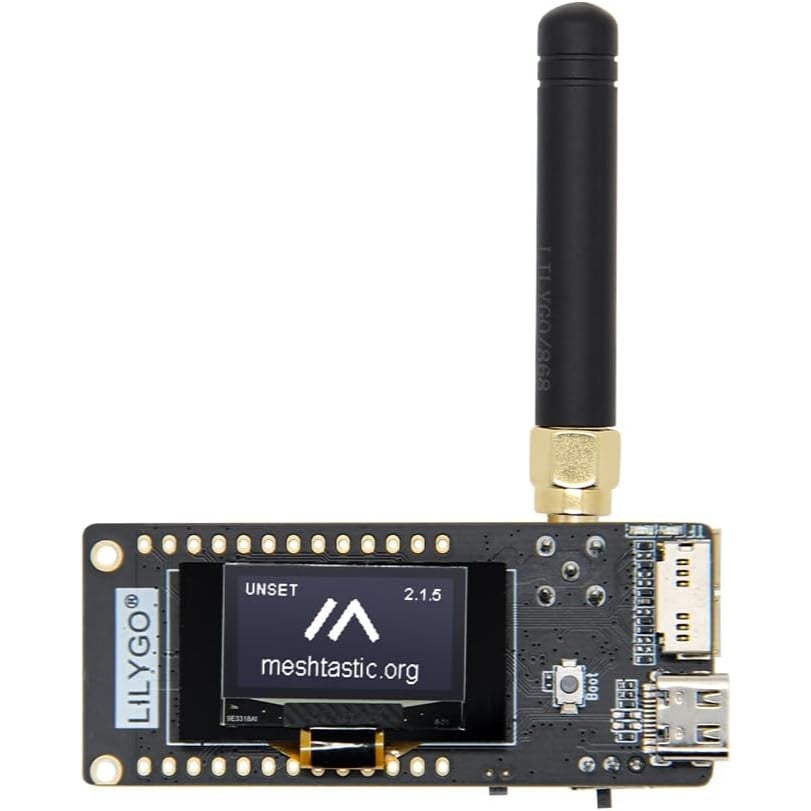

LILYGO T3-S3 Meshtastic Version – LoRa SX1262 868MHz, 3 image

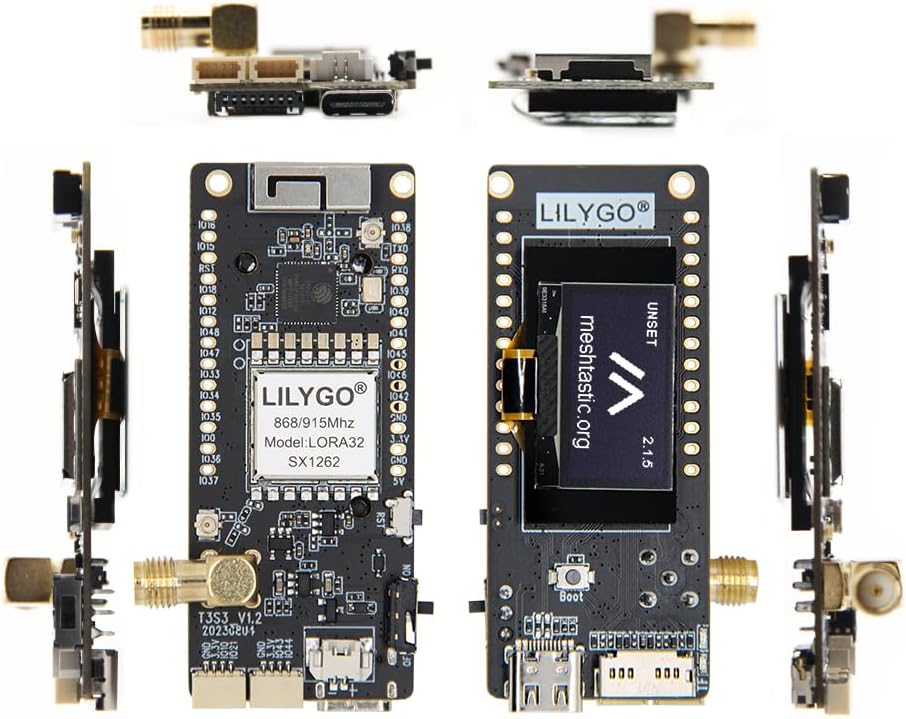

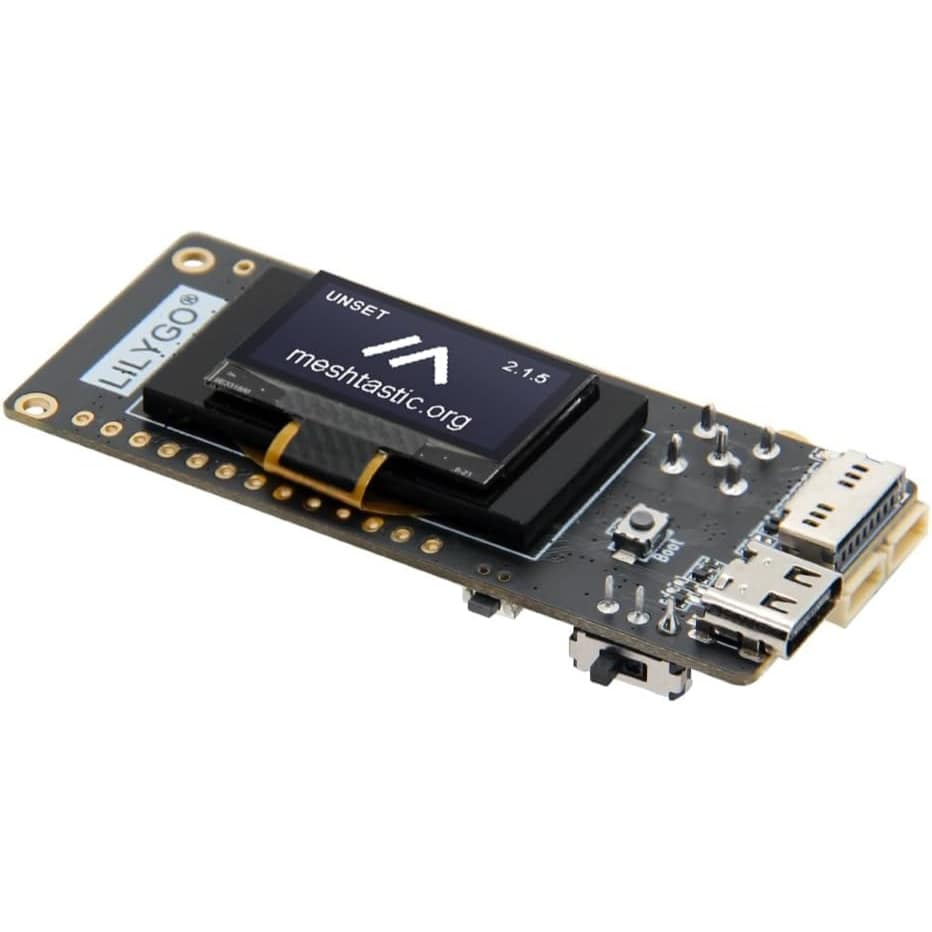

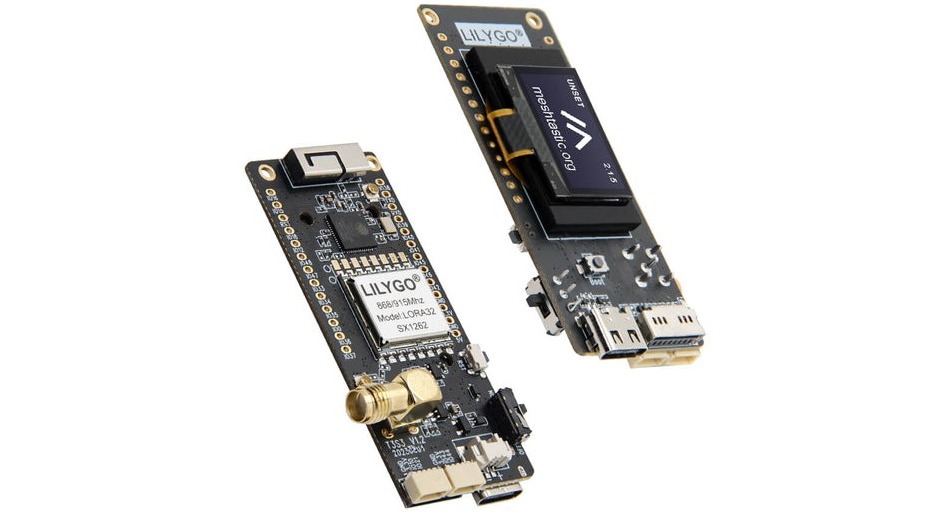

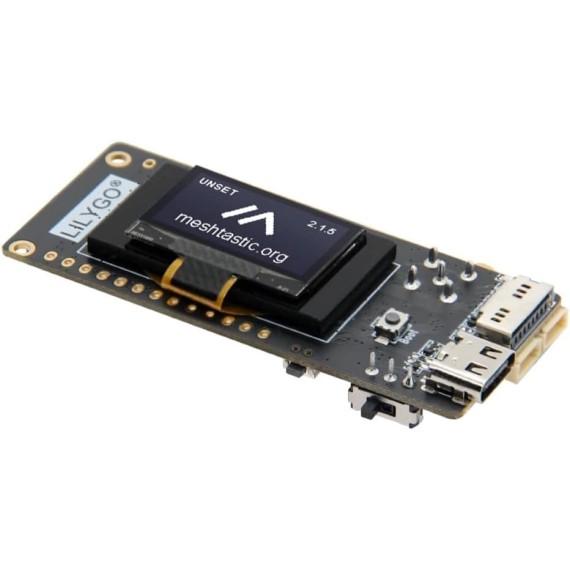

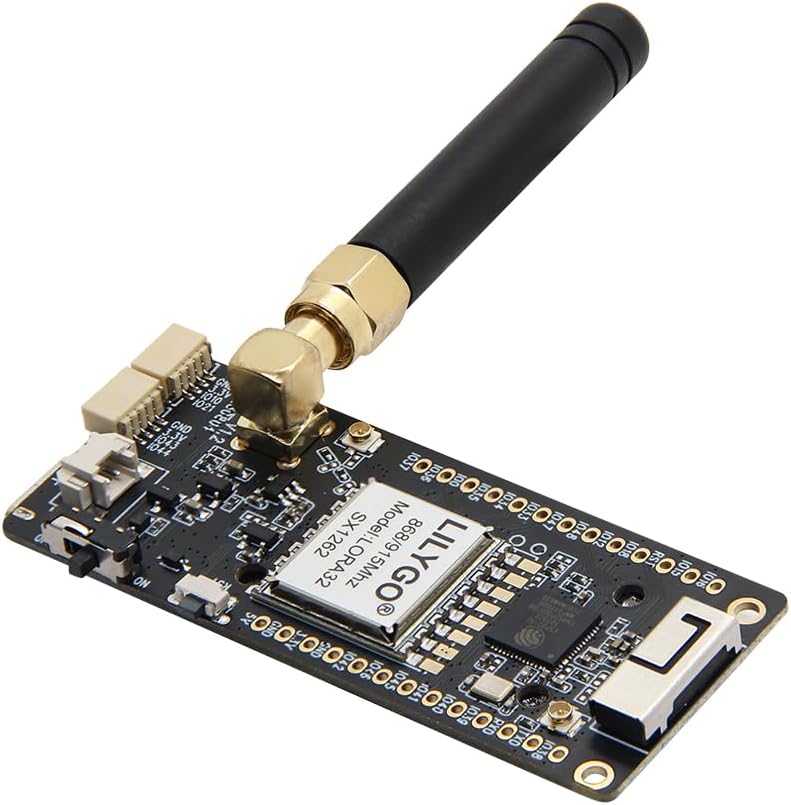

LILYGO T3-S3 Meshtastic Version – LoRa SX1262 868MHz

SKU:

19-00090221

Part Number: T3S3_SX1262_868

CompanyLILYGO Part NumberT3S3_SX1262_868

In Stock

Ships in 24 Hours

€29⁹⁰

+ −

Ask a question

Payments & Shipping

Description
Specifications

This development board is a powerful and compact development platform for building long-range wireless communication solutions. Powered by the ESP32-S3 chip, which integrates both Wi-Fi and Bluetooth 5.0, this board supports a wide range of IoT applications. It features a 0.96" OLED display for real-time data visualization and integrated LoRa transceiver module. This board is ideal for rapid prototyping, research, and development of wireless IoT products. Whether you're working on environmental monitoring, smart agriculture, remote sensing, or smart city solutions, the T3-S3 offers the flexibility and connectivity you need to make your projects a reality.
(Note: this is the Meshtastic Firmware version.)

Key features

High-Performance ESP32-S3 chip: Equipped with the ESP32-S3 chip, it supports Wi-Fi and Bluetooth 5.0, ensuring fast, reliable, and low-power wireless communication.
0.96-inch OLED display: The SSD1306 driven display provides a resolution of 128×64 pixels, allowing you to display real-time data clearly and efficiently.
Low-Power LoRa communication: The development board supports LoRa communication using SX1262 module, covering 868MHz frequency, suitable for long-range communication with low power consumption.
USB-C connectivity: Includes a USB-C port for easy data transfer and power supply.
Battery powered: The board is compatible with 3.7V LiPo batteries, making it portable for on-the-go applications.
Compact and lightweight: It is ideal for projects requiring small form factors.

Technical data

MCU	ESP32-S3FH4R2
Clock speed	240MHz
Flash	4MB
PSRAM	2MB
Wireless connectivity	Wi-Fi & Bluetooth 5
Display	0.96" 128×64 OLED with SSD1306 Driver
Lora chip	SX1262
Frequency	868MHz
High efficiency PA	+22dBm
Low RX current	4.6mA
