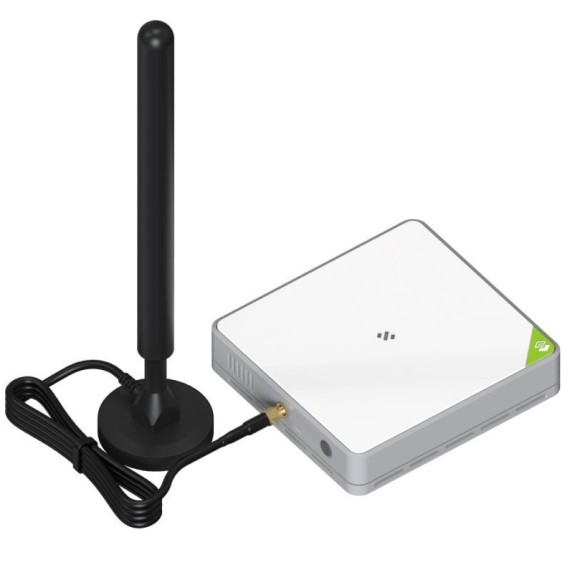

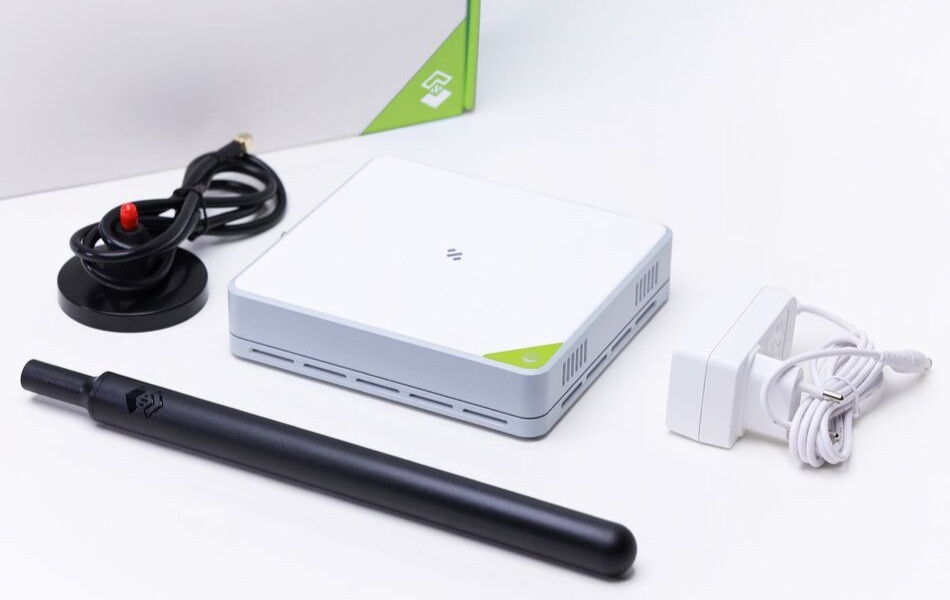

Seeed Studio SenseCAP M2 LoRaWAN Indoor Gateway – SX1302 868MHz

Κωδικός:

114992981

ΚατασκευαστήςSeeed Studio

Εξαντλημένο

[Καλέστε για Τιμή]

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

The SenseCAP M2 Multi-Platform LoRaWAN Gateway is a fully customizable and open-sourced LoRaWAN gateway that supports connection to various network servers. It supports global LoRaWAN frequency plans from 865MHz to 923MHz and can be used in multiple LoRaWAN applications like smart buildings, environmental monitoring systems, precision farming, etc. It has wide-range coverage strong signal output capability and other features, making it the perfect gateway for building a LoRaWAN network.

Key features

Open-Source Support: Easily customize and develop users own LoRaWAN solutions for seamless integration into their specific use cases. Check out details here.

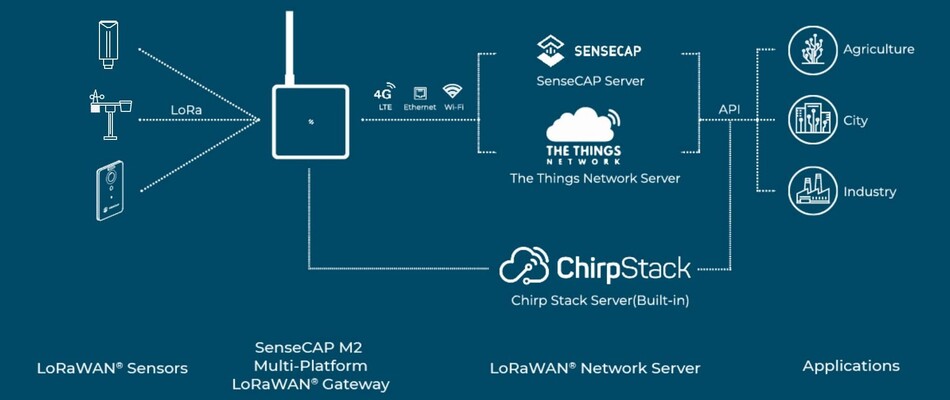

Support Multiple LoRaWAN Network Servers: Compatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics Station mode.
Built-in LoRaWAN Network Server: Based on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.
Built-in SenseCAP Local Console for Configuration: Provides a simple setup experience to configure the device on Web UI through Wi-Fi AP and Ethernet.
Support Power-over-Ethernet (PoE): For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device, making your deployment more reliable and faster.
Wide-range Coverage and Strong Signal: Provides up to 10km of LoRaWAN coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.
Excellent and Stable Performance: The gateway is powered by the mature hardware solution MT7628 and Semtech SX1302 baseband Long Range chip. It supports Wi-Fi and Ethernet internet connection.
Professional Management Tools and Cloud Services: Users could easily set up the gateway in a few simple steps via Web Interface. SenseCAP Portal and SenseCAP Local Console are also developed for users to monitor and manage the gateway efficiently and easily.

SenseCAP M2 Multi-Platform LoRaWAN Gateway can be configured in 2 ways:

Wi-Fi/Ethernet access to the SenseCAP Local Console
Access the SenseCAP Local Console via SenseCAP Portal remotely

As a LoRaWAN gateway, it could be able to provide miles of wireless network coverage and data transmission capacity for your LoRaWAN devices. SenseCAP M2 Multi-Platform LoRaWAN Gateway supports multiple applications like smart agriculture, smart city, or any smart project that requires network densification, providing both unique superior coverage and operational excellence.

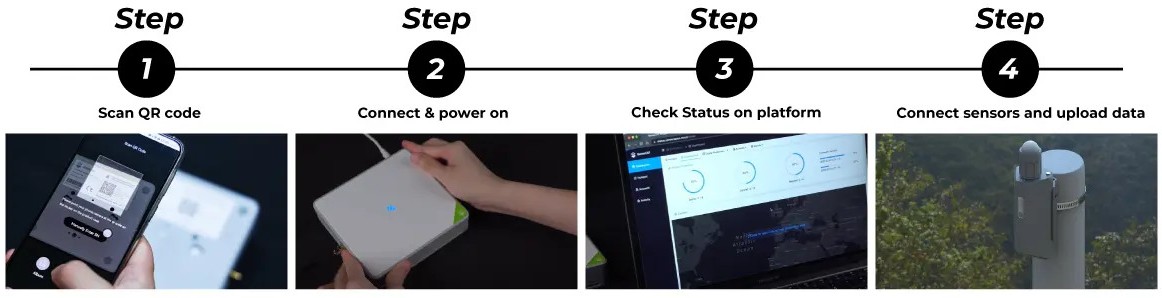

The Gateway can be set up easily out of the box. Users can bind and manage the device through SenseCAP Mate APP and SenseCAP Portal in 4 steps. After that, users can start configuring the sensors in the same way to create the LoRaWAN network solutions.

Scan the QR code for device binding
Connect gateway to internet and power on
Check gateway status on the SenseCAP platform
Connect sensors to the network and upload data to the cloud

Technical data

Processor	MT7628(MIPS24KEc@580MHz)
RAM	DDR2 128MB
Flash	32MB
Long Range Gateway Chip	SX1302
Channel	8
LoRaWAN Protocol	V1.0.3 Class A/Class B/Class C
Frequency Plan	IN865/EU868/RU864/US915/AU915/KR920/AS923
Long Range Sensitivity	-125dBm@125KHz/SF7
Long Range Sensitivity	-139dBm@125KHz/SF12
Long Range TX Power	Up to 26 dBm
Antenna	Long Range: 3dBi External Antenna with Base Wi-Fi: Internal Antenna
Antenna Impedance	50 Ohm
Wi-Fi	Support 2.4 GHz 802.11 b/g/n
Ethernet	1×RJ45 (10M/100M), PoE PD support
Input Voltage	DC 12V 2A PoE (IEEE 802.3 af), 40V–57V DC
Interfaces	Ethernet RJ45 ×1 RP-SMA Female Antenna Connector ×1 Micro SD Card Slot (for future use) ×1 USB Type-C (console) ×1
Management Software	Web

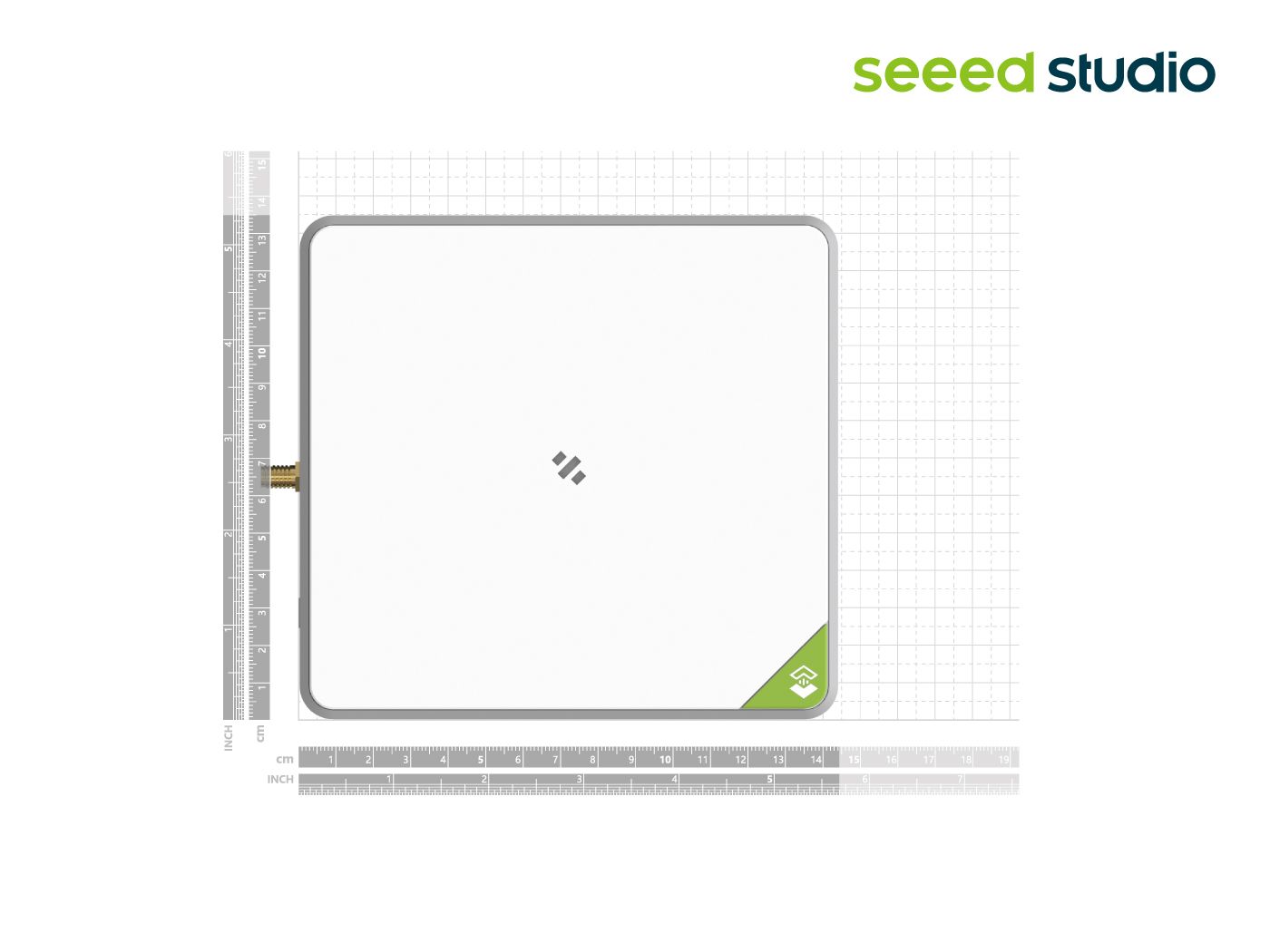

Dimensions	143.6×135×34mm (connector not included) 150.6×135×34mm (connector included) Package: 340×230×65mm
Operating Temperature	-20°C to 55°C
Relative Humidity	0% – 85% (non-condensing)
