Melody Generator - UM66T19L

19-00019807
UM66T19L
ΚατασκευαστήςOEM Part NumberUM66T19L
Διαθέσιμο
Αποστολή σε 24 ώρες
060
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
100+
Τιμή
0.48
0.42
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
The UM66T series is a CMOS LSI designed melody generator IC for use in telephones and toys application. It has an on-chip ROM programmed for musical performance. Produced by CMOS technology, the device results in very low power consumption. And with built-in RC oscillator, a compact melody module can be constructed with only a few additional components.
  • 64-note ROM memory - Bulit-in RC oscillator
  • 1.3V to 3.3V operating voltage
  • Low power consumption

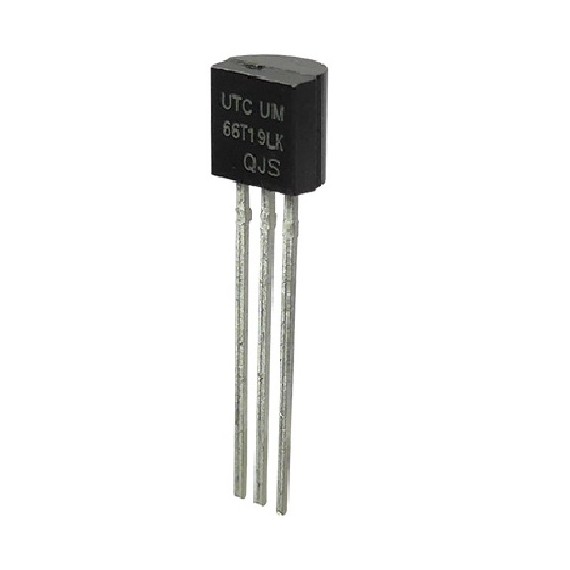

  • TO-92 package
  • Bulit-in RC oscillator
  • Level-hold mode to play repeatedly
  • Dynamic speaker can be driven with  external NPN transistor
Κατασκευαστής
OEM
Μικτό Βάρος
0.0002kg
