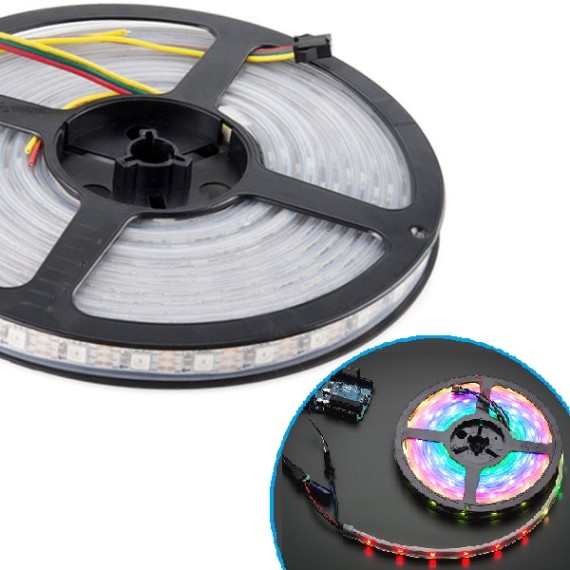

Addressable LED Strip RGB 30/m LED -1m (IP67)

OEM, 1460, 1 Year GRobotronics Warranty
30-00011464
There are 30 RGB LEDs per meter, and you can control each LED individually.
9.90
Available
for online order
+
5+ 10+ 100+ 1000+
8.91 7.92 6.93 5.94
Add to wish list
Διαθεσιμότητα Καταστήματος Αθήνας
Low Availability
These strips have 30 digitally-addressable pixel LEDs per meter and are very affordable and are only 10mm wide. This is the strip with black flex PCB.
There are some things to watch for:
  • These LED's use about 9.5 Watts max (~2 Amps @ 5V) per meter. The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current. A good power supply such as our 5V 2A or 10A supply is key!
  • To make the strip thin and easier to manufacture, the controller chip is inside the LED, which is kind of cool, but also means that the chip only uses a single pin for input and a single pin for output. The protocol used is very very timing-specific and can only be controlled by microcontrollers with highly repeatable 100nS timing precision. We have example code for using with the Arduino Uno/Mega microcontroller at 8MHz and 16MHz, but it will not work with the Raspberry Pi, Basic Stamp, NETduino, any other interpreted/virtual machine microprocessor or any processor slower than 8 MHz. For those processors, check our 32 LED/meter digital LED strip which has SPI-like input/output and works well with Pi, NETduino, and other processors.
  • The way the pixels are controlled by an Arduino, the entire strip must be buffered in memory, and we've found many Arduino UNO projects only have about a 1500bytes of RAM available after all the extras are included - enough for about 500 LED pixels. If you want to drive the entire strip and have some other libraries included, you may need to use a Mega.

There are 30 RGB LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip. Only 1 digital output pin are required to send data down. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you

The strip is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters, there are cut-lines every 1.3"/3.4cm (1 LED each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer, just watch how much current you need! We have a 5V/2A supply that should be able to drive 1 meter and a 5V/10A supply that can drive up to 10 meters (depending on use). You must use a 5V DC power supply to power these strips, do not use higher than 6V or you can destroy the entire strip.

Company:
OEM
MPN:
1460
Warranty:
1 Year GRobotronics Warranty
Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Made in:
China
IP Rating:
IP67
Led per meter:
30
Power per meter:
2
  • It does not work like a classic led strip, it requires microcontroller.
  • Sold per meter.
  • Wide: 13mm with sealing
  • Thick: 3mm with sealing
  • Long per segment: 30mm (1.18")
  • 30 LEDs per meter
  • IP67 weatherproof
  • Maximum 5V @ 60mA draw per 1.3" strip segment (all LEDs on full brightness)
  • 5VDC power requirement (do not exceed 6VDC) - no polarity protection
  • 1 integrated RGB LEDs per segment, individually controllable
  • LED wavelengths: 630nm/530nm/475nm
  • Connector: 3-pin JST SM
  • Chip Led: WS2812
