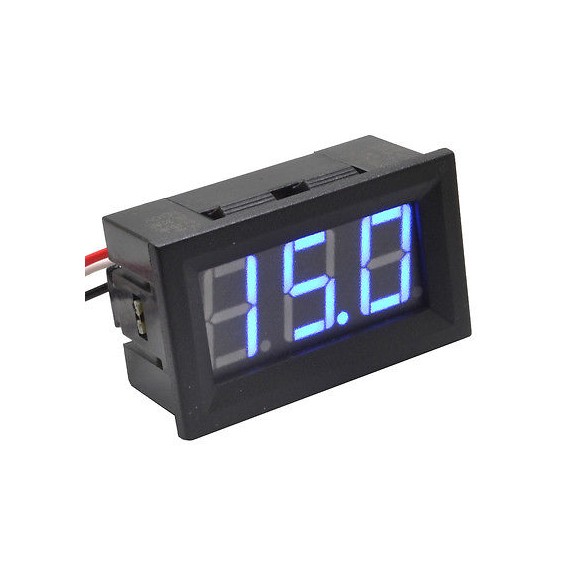

Βολτόμετρο DC 0-100V Τριών Καλωδίων - Μπλε 0.56"

από OEM
This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up. Simply connect the red wire to the positive supply, black to negative ground and white to measure positive voltage.
19-00010742
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
5.90
Χωρίς ΦΠΑ 4.76
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 4.72

ΠΕΡΙΓΡΑΦΗ

This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up. Simply connect the red wire to the positive supply, black to negative ground and white to measure positive voltage. The display has a microcontroller that will read the voltage, compare it to a stable reference and display the voltage with 0.1V precision on a 3-digit 0.56" tall 7-segment display. It measures from 0V up to 99.9V. The meter draws 6-7mA to power the microcontroller and display. This particular LED display is a nice blue, which we found very readable.

ΣΥΝΔΕΣΜΟΛΟΓΙΑ

  • Red: Power Supply +
  • Black: Power Supply -, Measure Voltage -
  • Blue: Measure Voltage +

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.017kg
Χώρα Προέλευσης:
Κίνα
Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Τύπος Οργάνου:
  • Βολτόμετρο
Είδη μέτρησης:
  • DC τάση (V)
Εύρος μέτρησης DC τάσης:
0-100V

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Range: DC 0 - 99.9V
  • Working current: 6- 7mA
  • Display: Three 0.56" LED digital tube
  • Display color: Blue
  • Refresh rate: about 500mS / times
  • Input: DC voltage (<1.2 times the range)
  • Accuracy: 1 %(+/- 1 digit)
  • Power Supply: DC 7-25V
  • Operating temperature: -10 °c - 65°c
  • Dimensions: 48x29x21mm
  • Panel cutout: 45.5mm x 26.5mm
  • Digit size: 14mm/0.56" high, blue LEDs
