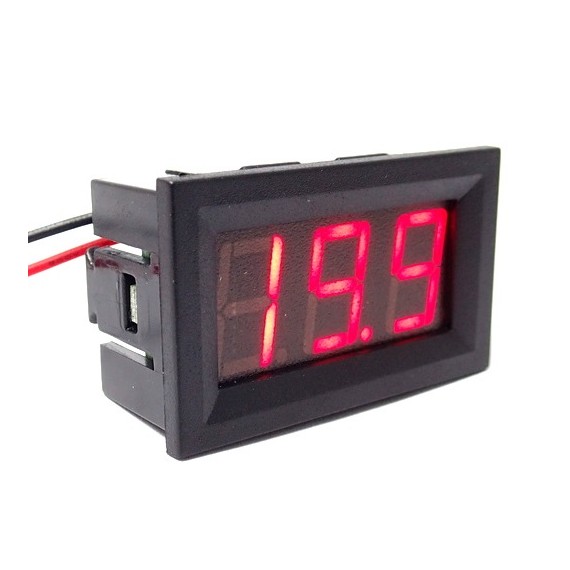

Panel Volt Meter 3.5 - 30V Two Wires - Red 0.56"

19-00026170
In Stock
Ships in 24 Hours
390
Our quantity discounts:
Quantity
10+
100+
Price
3.12
2.73
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

This panel meter simply connects to whatever DC supply you are trying to track, easy to wire up!

Simply connect the red wire to the positive supply, and black to negative ground. The display has a microcontroller that will read the voltage, compare it to a stable reference and display the voltage with 0.1V precision on a 3-digit 0.56" tall 7-segment display. It works from 4.5V up to 30V and is reverse-polarity protected so it will be good for nearly any electronic project! The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid green, which we found very readable. To mount to your enclosure, simply cut a 45.5mm × 26.5mm rectangle and snap it in.

Specifications:

  • Range: DC 3.5 - 30V
  • Display: Three 0.56" LED digital tube
  • Display color: Red
  • Accuracy: 1 %(+/- 1 digit)
  • Refresh rate: about 2 Hz
  • Operating temperature: -10 °c - 65°c

Dimensions:

  • Dimensions: 48x29x21mm
  • Panel cutout: 45.5mm x 26.5mm
  • Digit size: 14mm/0.56" high, green LEDs
  • Range: DC 4.5 - 30V
  • Display: Three 0.56" LED digital tube
  • Display color: Red
  • Accuracy: 1 %(+/- 1 digit)
  • Refresh rate: about 2 Hz
  • Operating temperature: -10 °c - 65°c
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Oem
G. Weight
0.017kg
Meter Type
  • Voltmeter
Measurement
  • DC voltage
DC voltage measuring range
3.5-30V
