e-Paper Display Module 4.2" 400x300 (Black-White)

31-00013186
13186
Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi
Waveshare Universal e-Paper Raw Panel Driver HAT
Waveshare Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth
Panel Case for e-Paper 4.2"

CompanyWaveshare Part Number13186
In Stock
Ships in 24 Hours
2990
Our quantity discounts:
Quantity
10+
Price
26.91
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

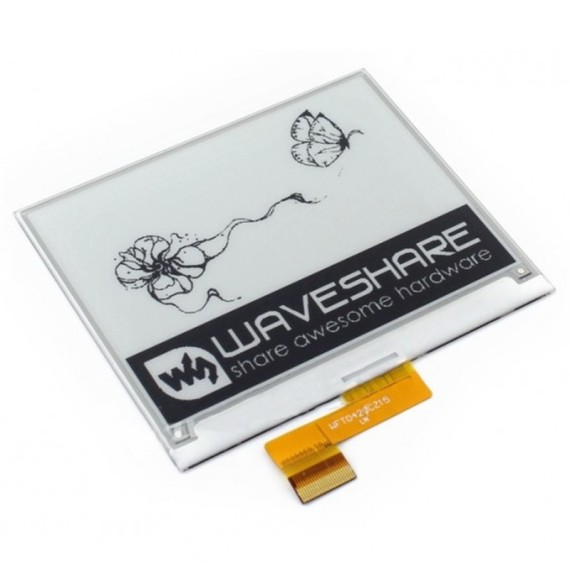

This is an E-Ink raw display, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.



  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)



NOTES

  • This is a raw display, you may also want to buy the assembled variant for easy testing and comparing: 4.2inch e-Paper Module

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 90.1×77×1.18mm
  • Display size: 84.8×63.6mm
  • Dot pitch: 0.212×0.212
  • Resolution: 400×300
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 4s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
Company
Waveshare
Gross Weight
0.017kg
Display Size
4.2 "
Resolution
400x300
Display Color
  • Black-White
Touchscreen
No
Interface
  • SPI
