Display e-Paper 4.2" 400x300 (Black-White)

31-00013353
13353
CompanyWaveshare Part Number13353
In Stock
Ships in 24 Hours
3990
Our quantity discounts:
Quantity
10+
Price
37.91
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

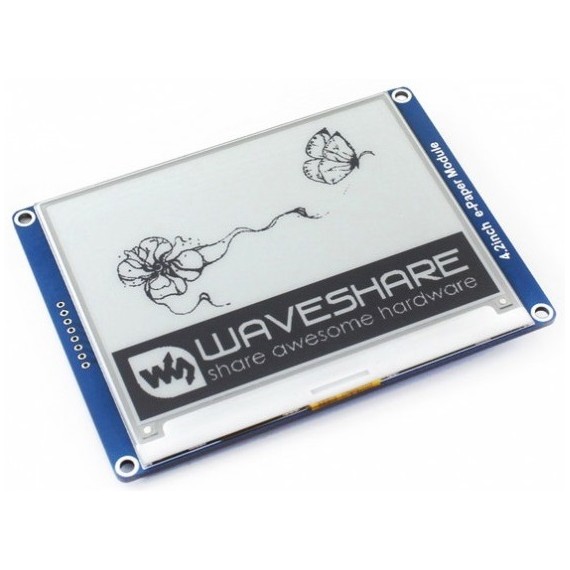

This is an E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 103.0mm × 78.5mm
  • Display size: 84.8mm × 63.6mm
  • Dot pitch: 0.212 × 0.212
  • Resolution: 400 × 300
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 4s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.121kg
Display Size
4.2 "
Resolution
400x300
Display Color
  • Black-White
Touchscreen
No
Interface
  • SPI
