Pico Display OLED 1.3" 128x64 (Black-White)

31-00019376
CompanyWaveshare
In Stock
Ships in 24 Hours
€1240
Waveshare
Our quantity discounts:
Quantity
10+
Price
€11.16
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

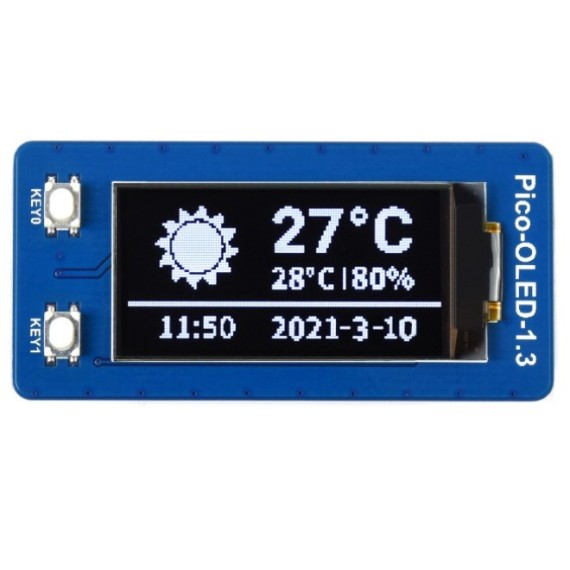

1.3" OLED Display Module For Pico
Embedded SH1107 Driver, Using SPI/I2C Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

Features:

  • Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
  • 2x user buttons for easy interacting
  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)





NOTES

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
2x User Buttons For Easy Interacting



Pinout Definition

  • Operating Voltage: 3.3V
  • Interface:
    • 4-wire SPI
    • I2C
  • Display Panel: OLED
  • Driver: SH1107
  • Resolution: 64x128 pixels
  • Display Color: Black, White
  • Display Size: 14.70x29.42mm
  • Pixel Size: 0.15x0.15mm
  • Dimensions: 52.00x25.00mm
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.017kg
Display Size
1.3 "
Resolution
128x64
Display Color
  • Black-White
Touchscreen
No
Interface
  • I2C
  • SPI
HAT Type
  • Display
Συμβατότητα HAT
  • Raspberry Pi Pico
