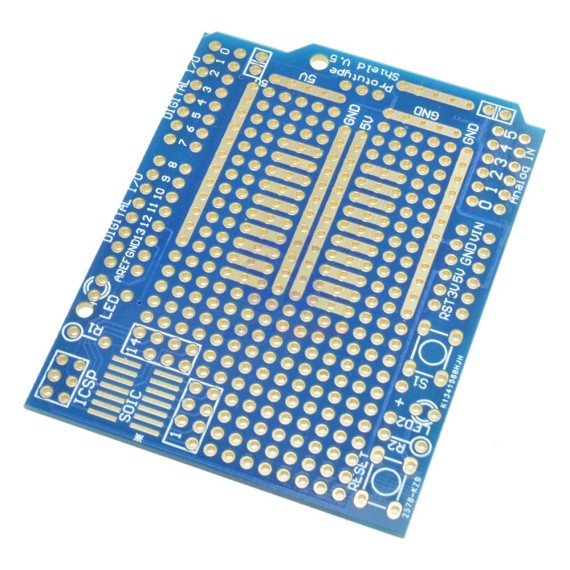

Proto Shield for Arduino UNO V5.0

SKU:

39-00011803

CompanyOem

In Stock

Ships in 24 Hours

€1⁸⁰

Our quantity discounts:

Quantity

10+

100+

Price

€1.44

€1.26

+ −

Ask a question

Availability in Retail Store

Payments & Shipping

Description
Specifications

Works with the Uno! This prototyping shield is the best out there (well, we think so, at least). It works with UNO, NG, Diecimila and Duemilanove Arduinos. You can use it with a Leonardo but it will not break out the hardware SPI pins (they're only on the ISP connector underneath) or the IOREF/SDA/SCL pins. However, the SDA/SCL pins on the Leonardo are also on digital #2 and #3 so you can still use them by connecting to #2 and #3.

It has a nice standard 2.54x2.54mm prototying grid with big pads
A IC pattern for adding DIP ICs up to 20 pins
Power rails down the middle and sides
A reset button and an extra general use button
2x 3mm general use LEDs, red and green, as well as 2 matching resistors
The ICSP header is up top if you like to upload to your Arduino using a programmer
A surface-mount chip area for up to 14 SOIC size parts
Compatible with either tiny breadboards or 'standard' breadboards with the rails removed.
Every pin is brought out, including the new 3V and Reset header pins
2x 0.1uF capacitors on either side for extra power stability
