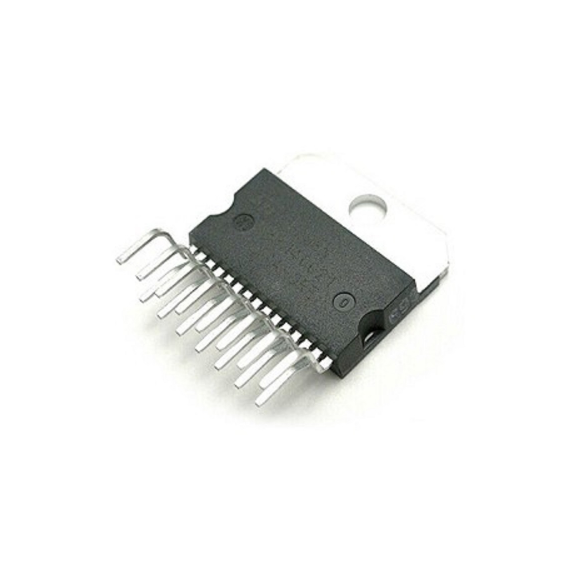

Motor Driver L298N 2A

The LN298 is a high voltage, high current, dual full-bridge motor driver designed to  accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.

05-00029809
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: Texas Instruments
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
8.60
Χωρίς ΦΠΑ 6.94
+

ΠΕΡΙΓΡΑΦΗ

The LN298 is a high voltage, high current, dual full-bridge motor driver designed to  accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.

Comes in a staggered, 15-lead Multiwatt package. Check below for a breakout board.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
Texas Instruments
Μικτό Βάρος:
0.001kg
Max. Current per Channel:
2A
Τύπος Οδηγού:
  • DC Motor
  • Stepper

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating supply voltage of up to 46V
  • 4.5-7VDC logic supply voltage
  • Total DC current of up to 4A
  • Low saturation voltage
  • Over-temperature protection
  • Logical '0' input up to 1.5V (high-noise immunity)
